American V Twin
Made to order. Ships in 2–3 days.
Price is per empty pair, including shipping. Stock mounting hardware is reused.
8-inch only: a small modification to the inner fairing vent outlet is required. The 6.5-inch version does not require that modification.
Vehicle fitment
2015–2023 Road Glide / Special; 2016–2019 Ultra; 2020–2024 Limited; 2022–2023 ST; 2015–2016 CVO Ultra; 2018–2022 CVO Road Glide; 2022–2023 CVO Limited; 2023–2025 Road Glide 3; 2024–2025 Road Glide Police.
Stock conventional fairings only. Skyline fairings are excluded. See the complete model, year and trim list below.
Build around the speaker, not just its watt rating. The AVT 8-inch ported fairing enclosure combines a contoured body with an integrated scroll port for a planned Road Glide audio build.
$575 per empty left/right pair, including shipping. Made to order. Ships in 2–3 days. ABS in matte black / charcoal. Speakers are sold separately.
An 8-inch driver's response depends on the enclosure it works in. Our development study compared 13 drivers in the same historical scroll-port geometry, showing the tradeoffs between extension, response shape and available output.
Modeled examples: the PRV 8MB700-4 reached its relative −3 dB point at about 123 Hz; the Beyma PRO8CF reached about 109 Hz, with a larger response rise. This shows why driver matching matters.
Historical small-signal model: response shape, not loudness. Each curve is normalized to its own median 200–400 Hz level. There is no common high-pass filter in this graph. These are development comparisons, not measured production response or fitment approvals.
The geometry predates final production reconciliation. The historical geometry used 5.69 L gross airspace, 0.88 L port volume and each driver's modeled intrusion. The PRV example used 0.50 L intrusion, leaving 4.31 L net with a modeled 121.9 Hz alignment. These values describe the study, not measured current-production tuning. The scroll-port analysis considered changing cross-section along the port rather than treating it as a uniform straight tube.
Usable low-frequency output also depends on cone travel. The next study compares output at each driver's own rated RMS power, using the lower of the thermal-response and simplified displacement ceilings. It is not an equal-wattage or equal-voltage comparison.
The orange DS18 PRO-1KP8.4 curve is thermal-only and optimistic: its Xmax value is missing from the dataset, so no cone-travel ceiling was applied. Its apparent lead must not be read as a verified output winner.
The 8-inch prototype was tested on August 26, 2026, with separate left/right cone and port captures and a combined rider-position sweep. This adds real installed-development evidence alongside the modeling.
The nearfield curves and rider trace represent different measurement positions and cannot be compared as equivalent output levels. The capture documents prototype behavior; it does not establish the historical model's tuning or a guaranteed production SPL.
Fits the Harley-Davidson models below with their original conventional Road Glide upper fairing and factory speaker-enclosure mounting arrangement (OEM right 76000458 / left 76000460).
| Harley-Davidson model | Years | Model code / trim |
|---|---|---|
| Road Glide | 2015–2023 | FLTRX |
| Road Glide Special | 2015–2023 | FLTRXS; 2023 FLTRXSANV Anniversary |
| Road Glide Ultra | 2016–2019 | FLTRU |
| Road Glide Limited | 2020–2024 | FLTRK |
| Road Glide ST | 2022–2023 | FLTRXST |
| CVO Road Glide Ultra | 2015–2016 | FLTRUSE |
| CVO Road Glide | 2018–2022 | FLTRXSE |
| CVO Road Glide Limited | 2022–2023 | 2022 FLTRKSE; 2023 FLTRKSEANV Anniversary |
| Road Glide 3 | 2023–2025 | FLTRT |
| Road Glide Police | 2024–2025 | FLTRXP |
Does not fit the redesigned Skyline fairing: 2023-and-newer CVO Road Glide (FLTRXSE), 2024-and-newer Road Glide (FLTRX) and CVO Road Glide ST (FLTRXSTSE), 2025-and-newer CVO Road Glide RR (FLTRXRRSE), or 2026 Road Glide Limited, Road Glide 3 and Road Glide Police. Earlier 2013-and-older Road Glides are also outside this application.
Aftermarket or swapped fairings and custom audio installations require an individual fit check. Vehicle fitment does not establish speaker fitment: confirm the exact speaker frame, mounting depth, magnet, terminals and mounting-hole pattern before ordering.
Confirm the exact speaker clearance before ordering. Nominal 8-inch size alone does not establish compatibility: frame shape, mounting depth, magnet dimensions, terminals and mounting holes all matter. Provide AVT with your motorcycle year, model, fairing configuration and exact speaker model. The comparison charts are acoustic development studies, not a fitment list.

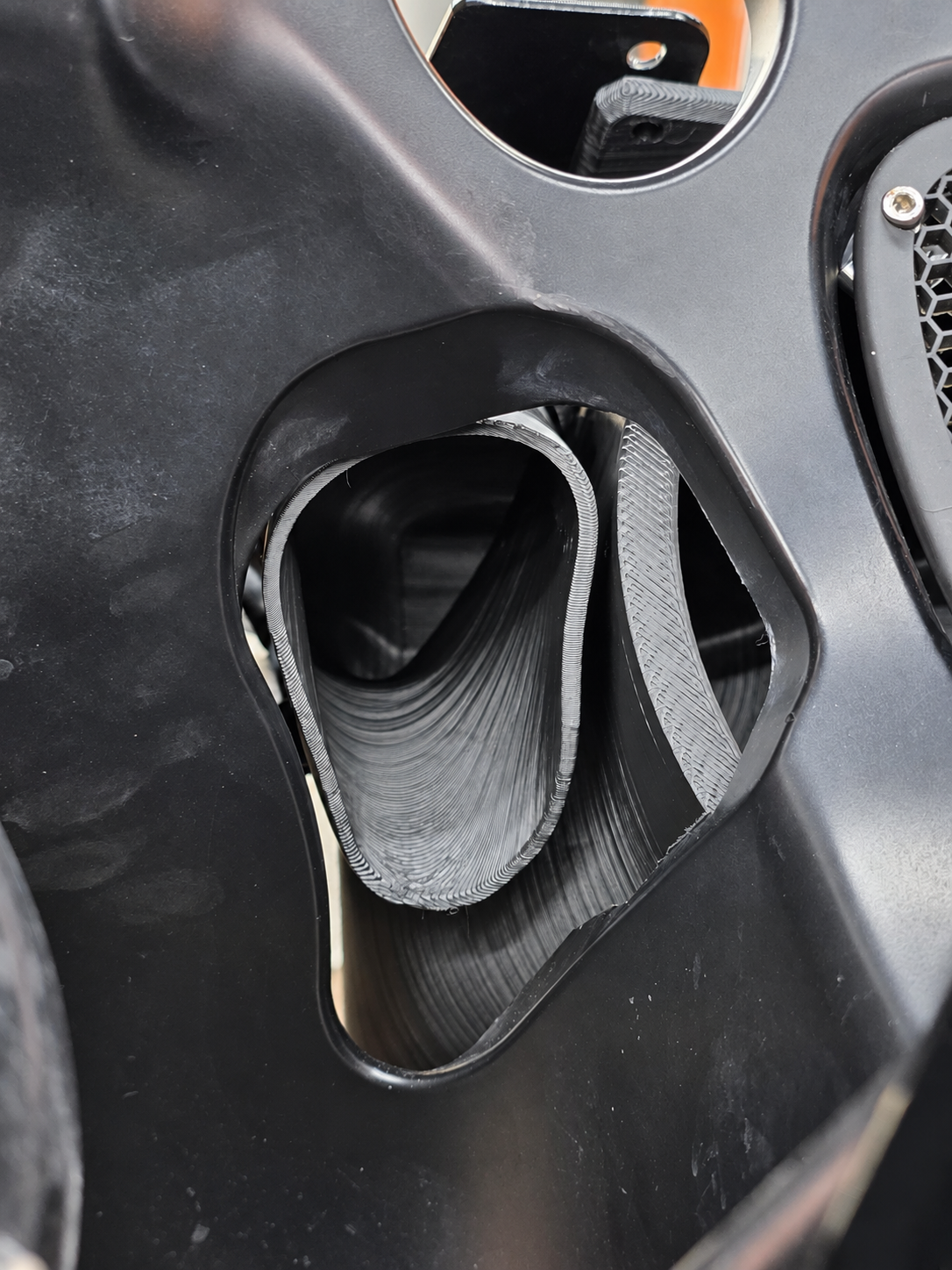

A small modification to the inner fairing vent outlet is required for the 8-inch enclosures. The gallery shows this installation detail. Confirm the modification with AVT before installation.
Reuse the stock enclosure mounting hardware. Check speaker seating, sealing, wiring, terminal and port clearance before reassembling the fairing. Configure suitable high-pass protection and amplifier gain for the installed speaker, following its manufacturer's operating guidance. Speaker power and impedance ratings are not ratings of the empty enclosure.
One empty left/right enclosure pair. Speakers, mounting hardware, grilles, wiring and accessories are not included. Retain the original enclosure mounting hardware for reuse.
Compare the AVT enclosure sizes, or contact AVT to plan your speaker pairing.
AMERICAN V TWIN / AVT ENCLOSURES
Explore the other size or talk with AVT about the complete build. Each enclosure has its own application and speaker-clearance requirements.
$525 per empty pair including shipping. Matte black / charcoal ABS. Made to order; ships in 2–3 days.
No inner-fairing vent-outlet modification required.
One enclosure shown; sold as a pair.
$575 per empty pair including shipping. Matte black / charcoal ABS. Made to order; ships in 2–3 days.
Requires a small inner-fairing vent-outlet modification.
One enclosure shown; sold as a pair.
Compare the two enclosure sizes, check the application and plan the speaker pairing with AVT.
