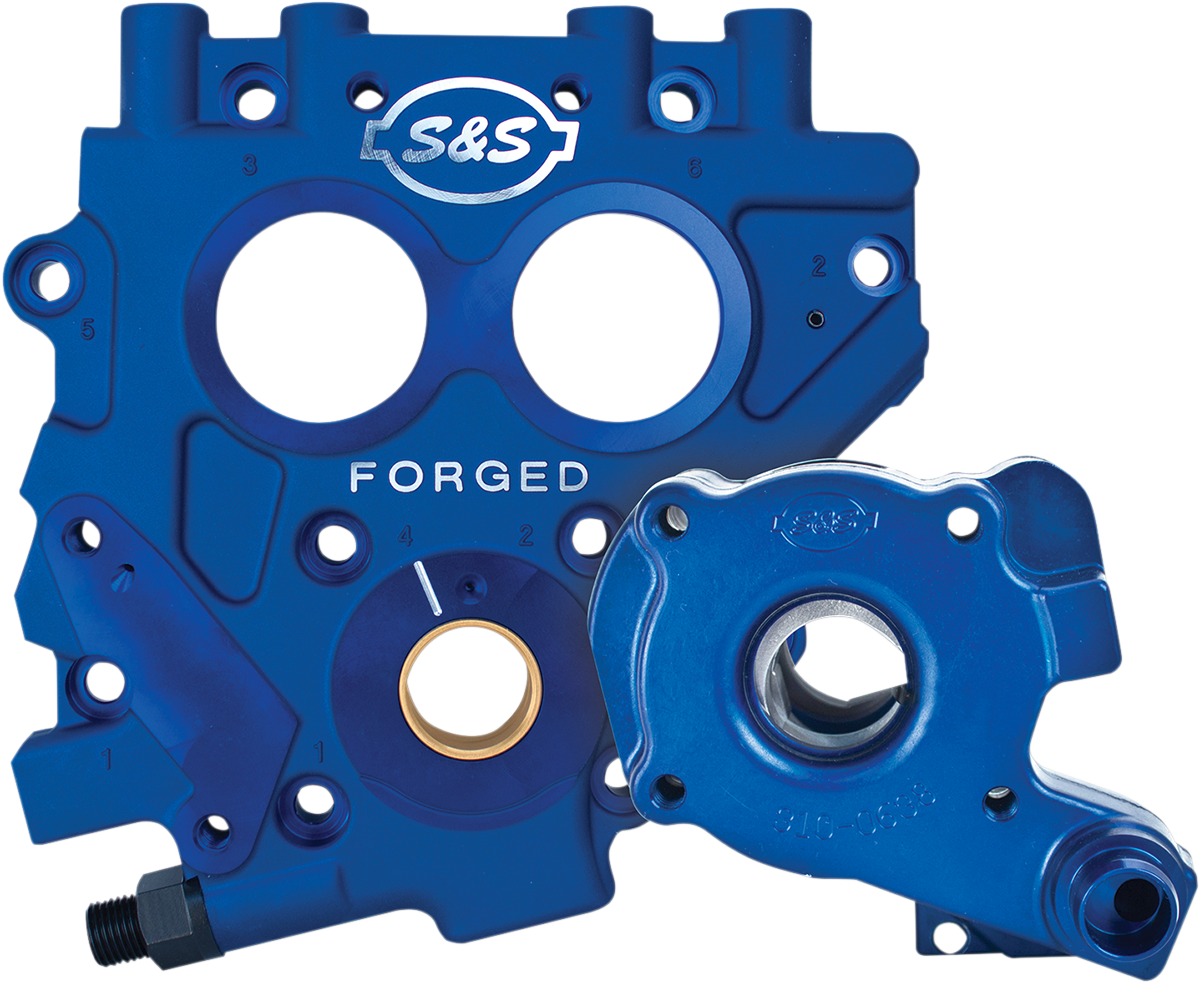

Oil Pump with Cam Plate
Features
- Precision CNC machined forged aluminum
- Increased structural strength
- Dimensional stability
- Freedom for internal porosity
- Separate scavenge sections for flywheel cavity and cam chest scavenge each area more efficiently with no interference
- Gerotors are designed to tolerate more pinion shaft runout without damage
- Cam chest pic up features a magnetic trap to protect scavenge rotors from metal debris
- Both scavenge rotors are protected from debris, the most common cause of stock oil pump failure
- Passage plugs are removable for service
- Bronze pinion shaft bushing in all models and bronze cam bushings in 07-15 style can be replaced
- Adjustable oil pressure regulator - adjust without removing plate from engine
- 99-06 cam support plate is designed to use late style hydraulic cam chain tensioners because stock spring-loaded tensioners used in 99-06 models don't adequately control the valve train at high rpm, especially with higher lift cams or performance valve springs
- Made in the U.S.A.
Specifications
- Color/Finish: Blue
- Material: Aluminum
- Model: TC3
- Product Name: Plate
- Riding Style: Street
- Type: Cam Support
- Units: Kit
- Country of Origin: US
- Package Dimensions: 15.24 L × 10.39 W × 5.77 H in
- Shipping Weight: 4.96 lb
