S&S CYCLE Camshaft Kit - 640 Gear Drive - Twin Cam '07-'17 | Dyna '06 33-5270
$948.95
Skip to product information
S&S CYCLE Camshaft Kit - 640 Gear Drive - Twin Cam '07-'17 | Dyna '06 33-5270
$948.95
Fitment check
Does this fit your bike?
A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.
Camshaft Kit - 640 Gear Drive - Twin Cam '07-'17 | Dyna '06
Features
- For 103/110 CI engines
- Strongest from 3000-6000 rpm
- Compression ratios from 10.5:1 to 11.5:1
- Improves valve timing accuracy by eliminating timing chain lash

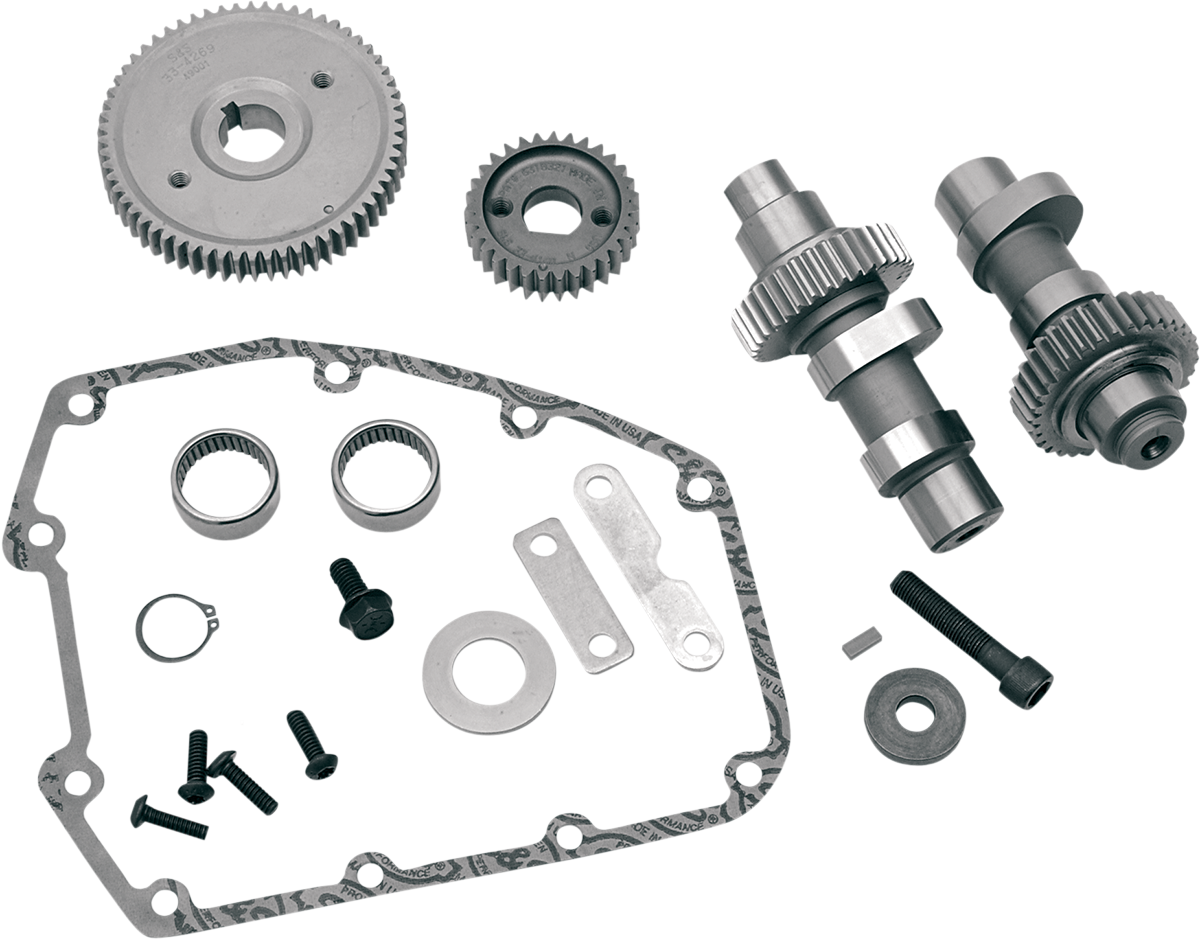

- Includes camshaft, inner and outer gears, gear cover gasket, oil passage block-off kit, retaining ring, and o-ring
- High-lift springs and adjustable pushrods required.
Specifications
- Application: Intake
- Exhaust Close: 25°
- Exhaust Duration: 270°
- Exhaust Lift: 0.640"
- Exhaust Lift at TDC: 0.214"
- Exhaust Lobe Centerline: 110°
- Exhaust Open: 60°
- Grind: 640 Series
- Intake Close: 60°
- Intake Duration: 265°
- Intake Lift: 0.640"
- Intake Lift at TDC: 0.228"
- Intake Lobe Centerline: 107.5°
- Intake Open: 25°
- Product Name: Cam Kit
- Riding Style: Street
- Type: Gear
- Units: Kit
- Country of Origin: US
- Package Dimensions: 11.39 L × 9 W × 4.63 H in
- Shipping Weight: 6.05 lb
