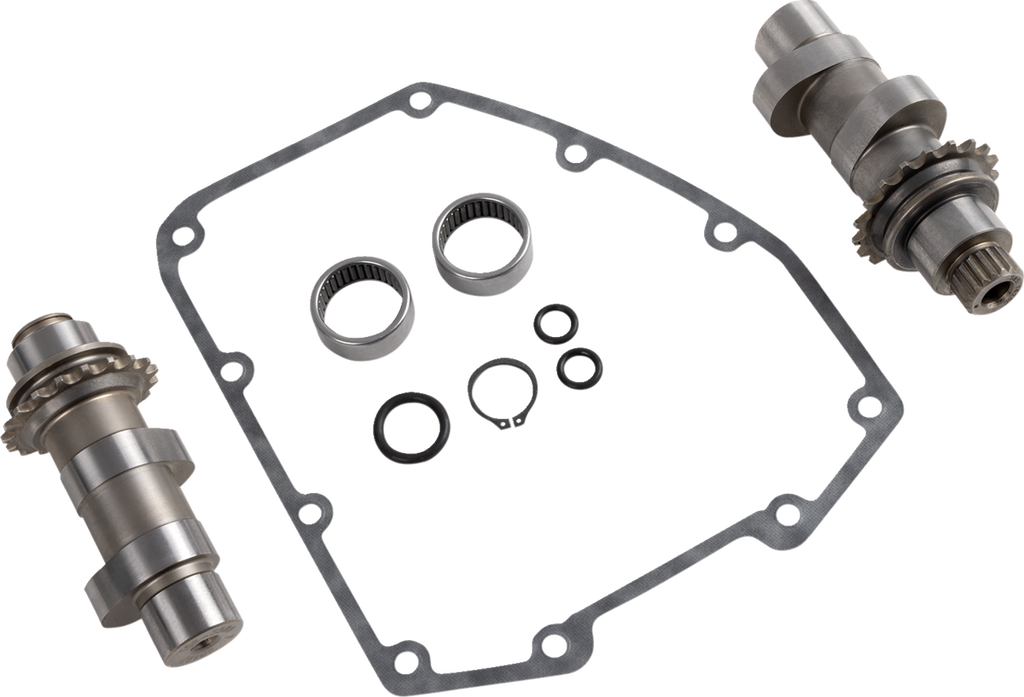

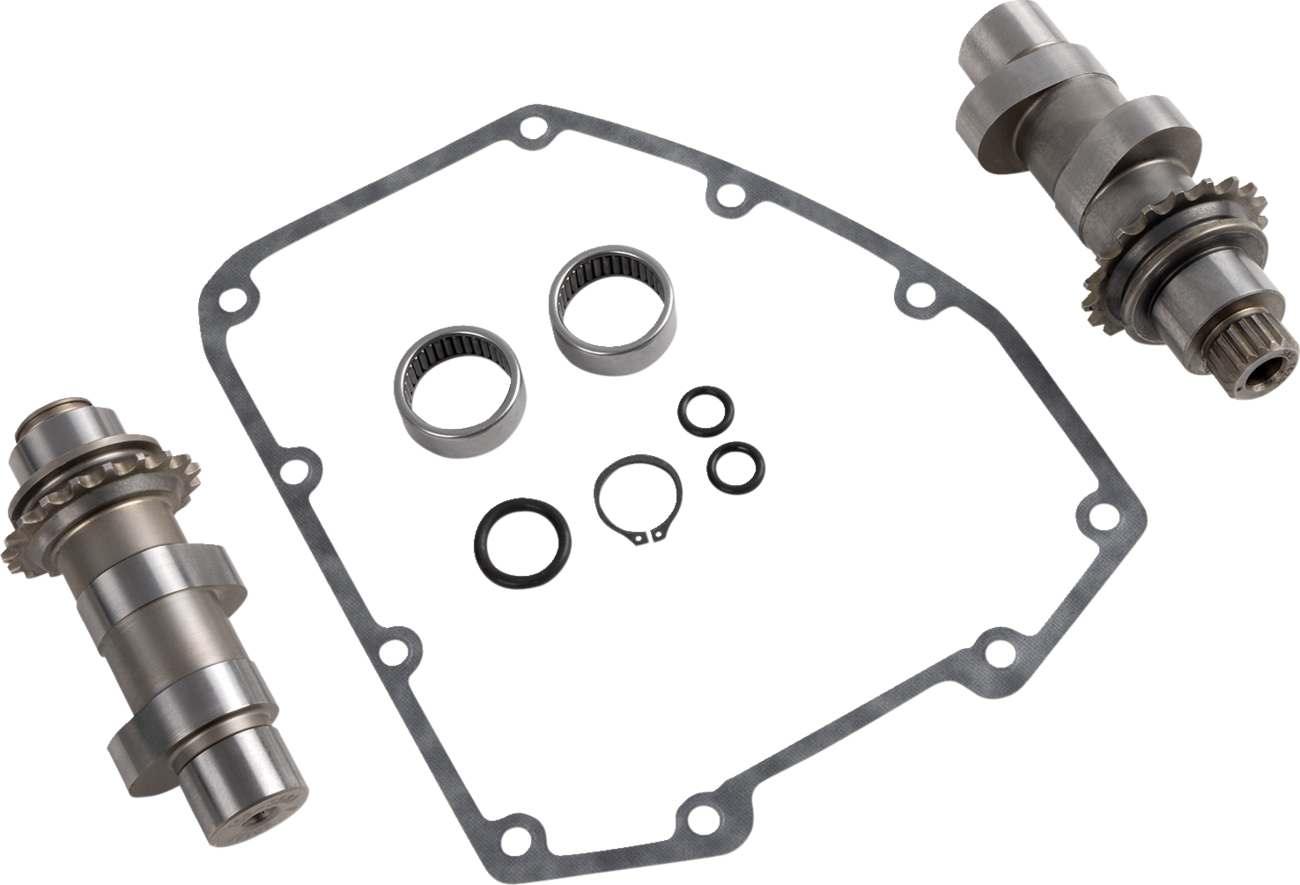

S&S CYCLE Camshaft Kit - 625C - Chain Drive - Twin Cam 106-4383
$418.95
Skip to product information
S&S CYCLE Camshaft Kit - 625C - Chain Drive - Twin Cam 106-4383
$418.95
Fitment check
Does this fit your bike?
A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.
Camshaft Kit - 625C - Chain Drive - Twin Cam
Features
- For 95" or larger engines with compression ratios between 10.0 to 10.75:1
- High-lift springs and adjustable pushrods required
- Strongest from 3000-6000 rpm
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specifications
- Application: Exhaust
- Color/Finish: Raw
- Exhaust Close: 20°
- Exhaust Duration: 260°
- Exhaust Lift: 0.625"
- Exhaust Lift at TDC: 0.184"
- Exhaust Lobe Centerline: 110°
- Exhaust Open: 60°
- Grind: 625 Series
- Intake Close: 55°
- Intake Duration: 255°
- Intake Lift: 0.625"
- Intake Lift at TDC: 0.189"
- Intake Lobe Centerline: 107.5°
- Intake Open: 20°
- Product Name: Camshaft Kit
- Riding Style: Street
- Type: Chain
- Units: Kit
- Country of Origin: US
- Package Dimensions: 11.41 L × 9.29 W × 4.64 H in
- Shipping Weight: 4.1 lb
