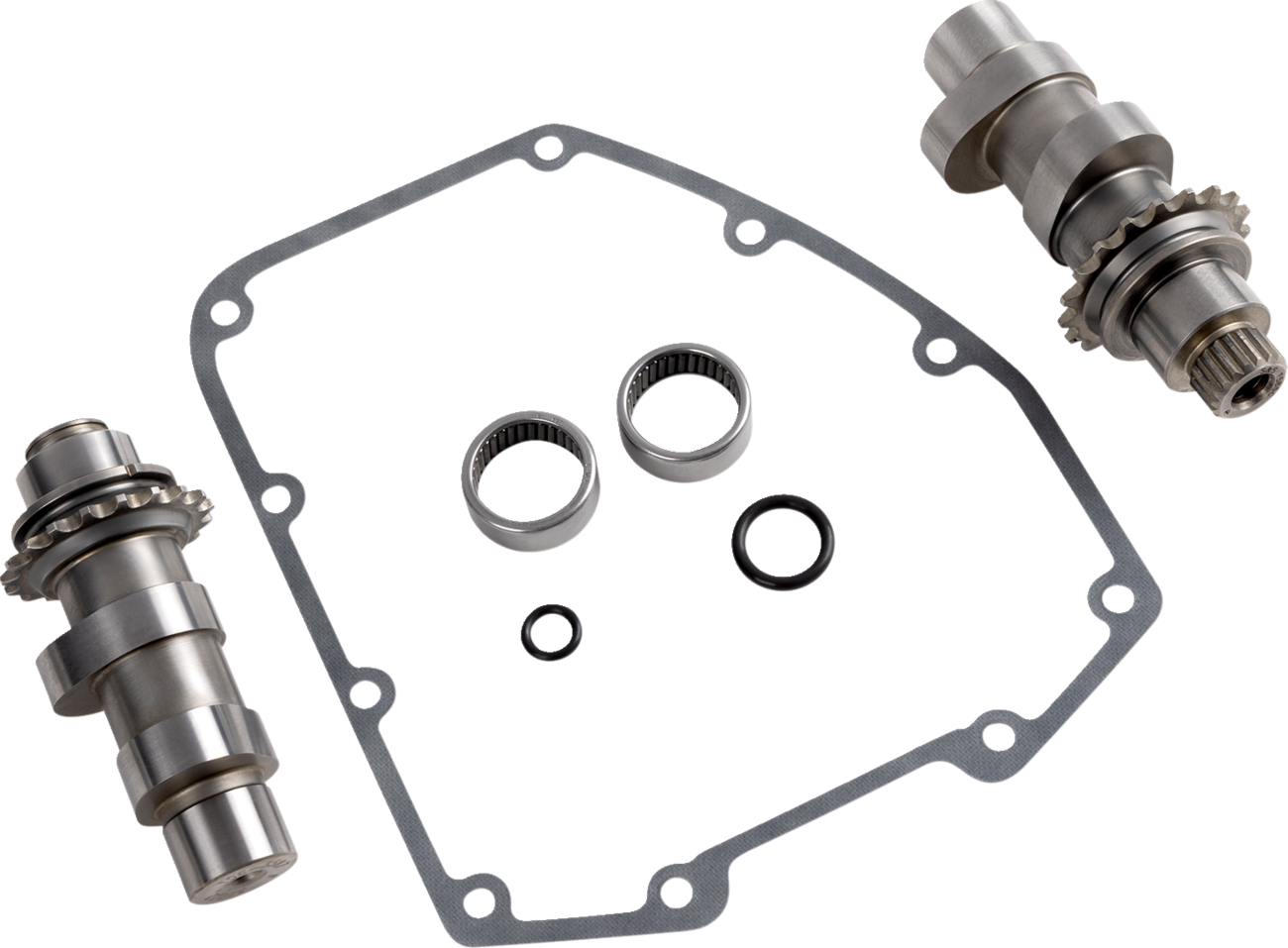

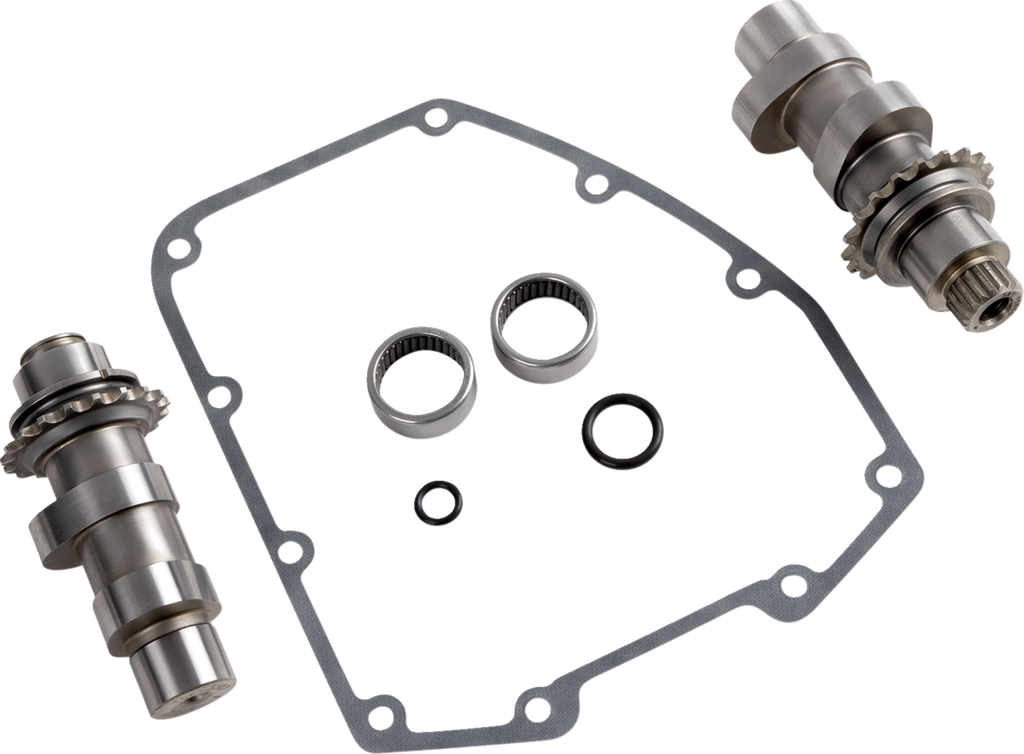

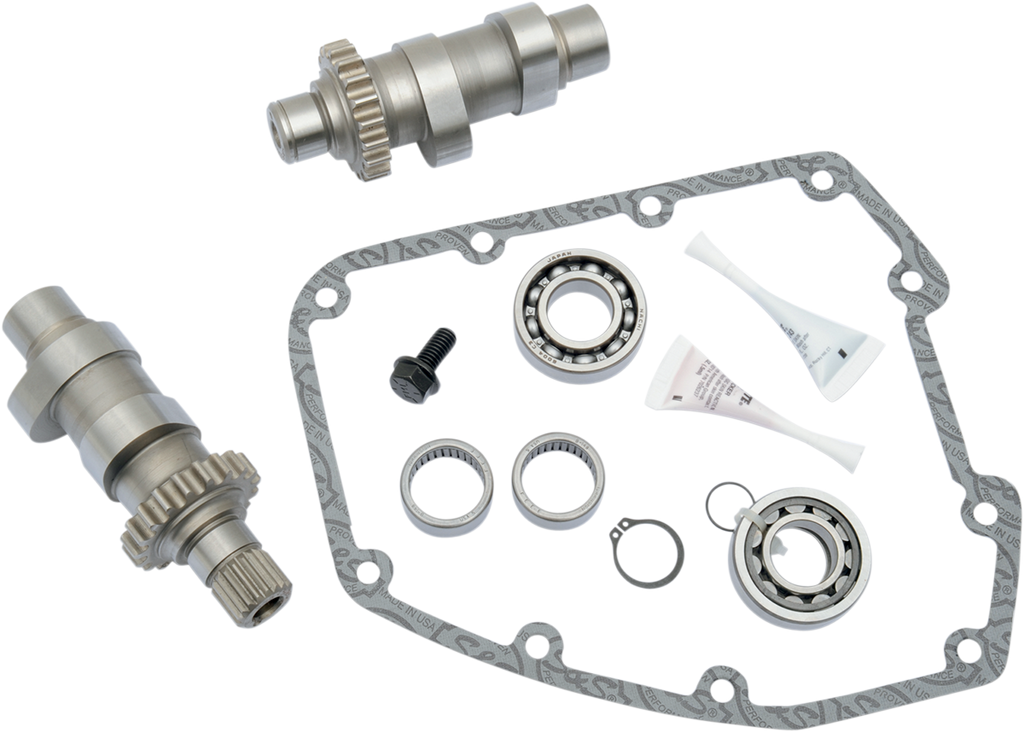

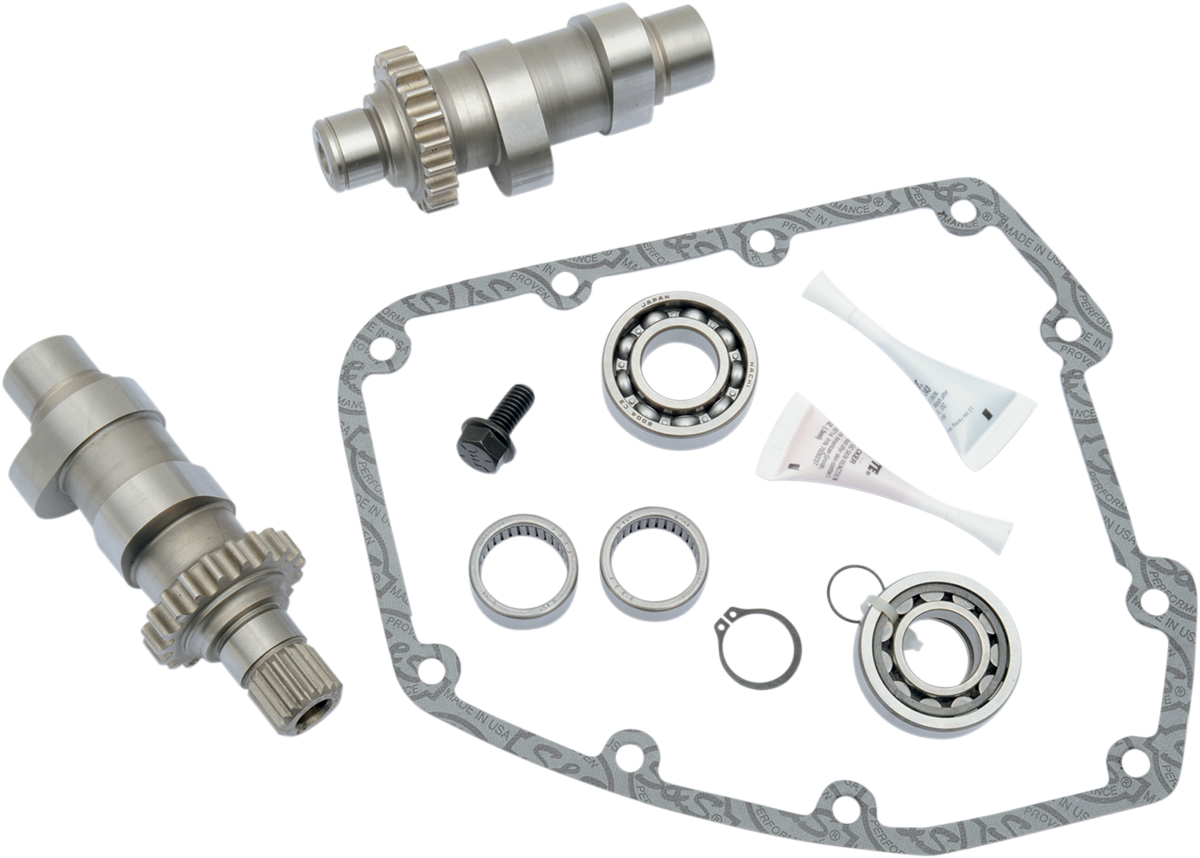

S&S CYCLE Camshaft Kit - 585C - Chain Drive - Twin Cam 106-4382
$399.95
Skip to product information
S&S CYCLE Camshaft Kit - 585C - Chain Drive - Twin Cam 106-4382
$399.95
Fitment check
Does this fit your bike?
A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.
Camshaft Kit - 585C - Chain Drive - Twin Cam
Features
- Designed for 88" to 107" engines with compression ratios from 10.0:0 to 10.5:1 and 100" and 107" engines with compression ratios 9.7:1 to 10.5:1
- Strongest from 3500-6000 rpm for 88" to 103" engines and 2500-5000 rpm for larger engines
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specifications
- Application: Exhaust
- Exhaust Close: 20°
- Exhaust Duration: 260°
- Exhaust Lift: 0.585"
- Exhaust Lift at TDC: 0.179"
- Exhaust Lobe Centerline: 110°
- Exhaust Open: 60°
- Grind: 585 Series
- Intake Close: 45°
- Intake Duration: 245°
- Intake Lift: 0.585"
- Intake Lift at TDC: 0.186"
- Intake Lobe Centerline: 102.5°
- Intake Open: 20°
- Product Name: Cam Kit
- Riding Style: Street
- Type: Chain
- Units: Kit
- Country of Origin: US
- Package Dimensions: 11.83 L × 9.31 W × 5.2 H in
- Shipping Weight: 3.9 lb
