S&S CYCLE Camshaft Kit - 583G - Gear Drive - Twin Cam 330-0107
$948.95
Skip to product information
S&S CYCLE Camshaft Kit - 583G - Gear Drive - Twin Cam 330-0107
$948.95
Fitment check
Does this fit your bike?
A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.
Camshaft Kit - 583G - Gear Drive - Twin Cam
Features
- Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes, making higher cam lifts possible
- Increase valve timing accuracy by eliminating timing chain lash and loosely fit stock chain
- Provides strong low end torque and horsepower
- Strongest from 1500-5000 rpm
- Material must be removed from inner surface of the stock gear cover to install
- A hydraulic press and other professional level tools are required for installation
- Cam bearings and gaskets must be replaced
- S&S recommends that adjustable pushrod/cover kit be used (sold separately)

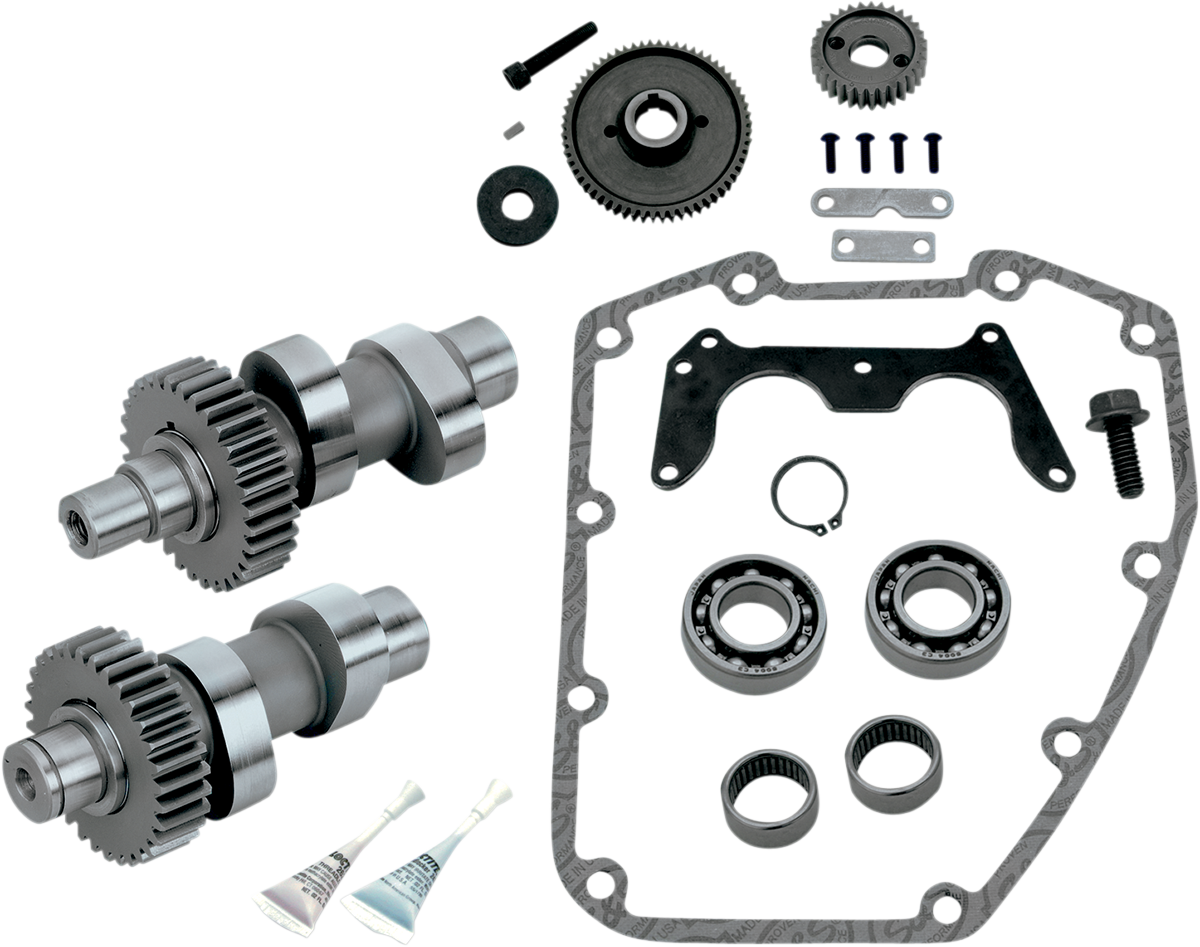

- Kit includes camshafts, inner gears, outer drive gears, inner, outer bearings, gasket and instructions
- Made in the USA
- Due to inherent characteristics of gear drives, more valve train noise maybe heard.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
- Not recommended for engines having compression ratios greater the 10.1:1.
Specifications
- Application: Intake
- Exhaust Close: 24°
- Exhaust Duration: 262°
- Exhaust Lift: 0.583"
- Exhaust Lift at TDC: 0.206"
- Exhaust Lobe Centerline: 107°
- Exhaust Open: 58°
- Grind: 583 Series
- Intake Close: 18°
- Intake Duration: 203°
- Intake Lift: 0.583"
- Intake Lift at TDC: 0.113"
- Intake Lobe Centerline: 96.5°
- Intake Open: 5°
- Product Name: Camshaft Kit
- Riding Style: Street
- Type: Gear
- Units: Kit
- Country of Origin: US
- Package Dimensions: 11.4 L × 8.95 W × 4.63 H in
- Shipping Weight: 6.1 lb
