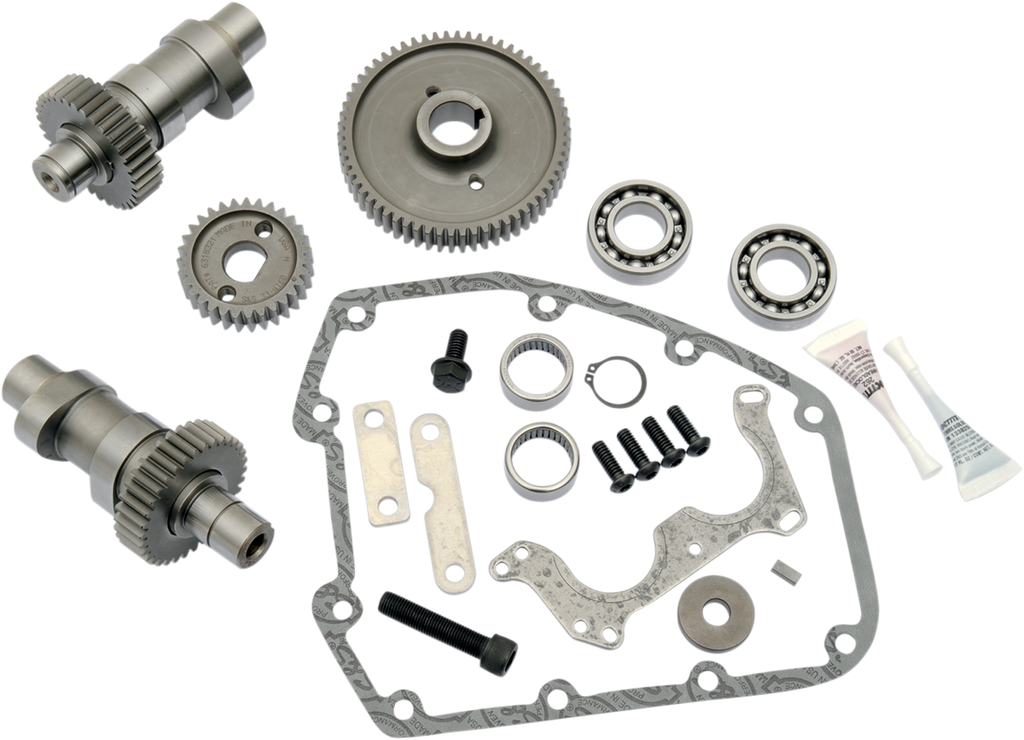

S&S CYCLE Camshaft Kit - 570G Gear Drive - Twin Cam 33-5178 — image 1

S&S CYCLE Camshaft Kit - 570G Gear Drive - Twin Cam 33-5178

$948.95
Skip to product information
S&S CYCLE Camshaft Kit - 570G Gear Drive - Twin Cam 33-5178 — image 1

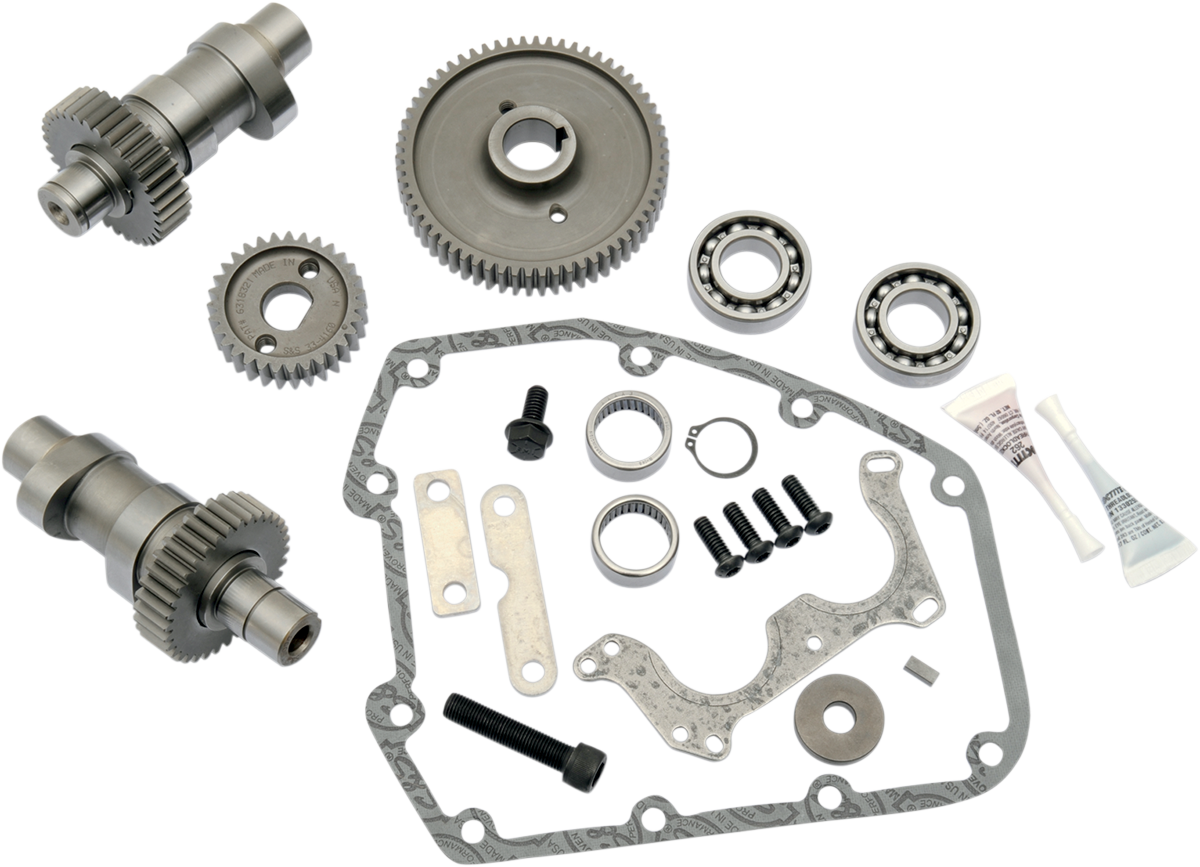

  • S&S CYCLE Camshaft Kit - 570G Gear Drive - Twin Cam 33-5178 — image 1

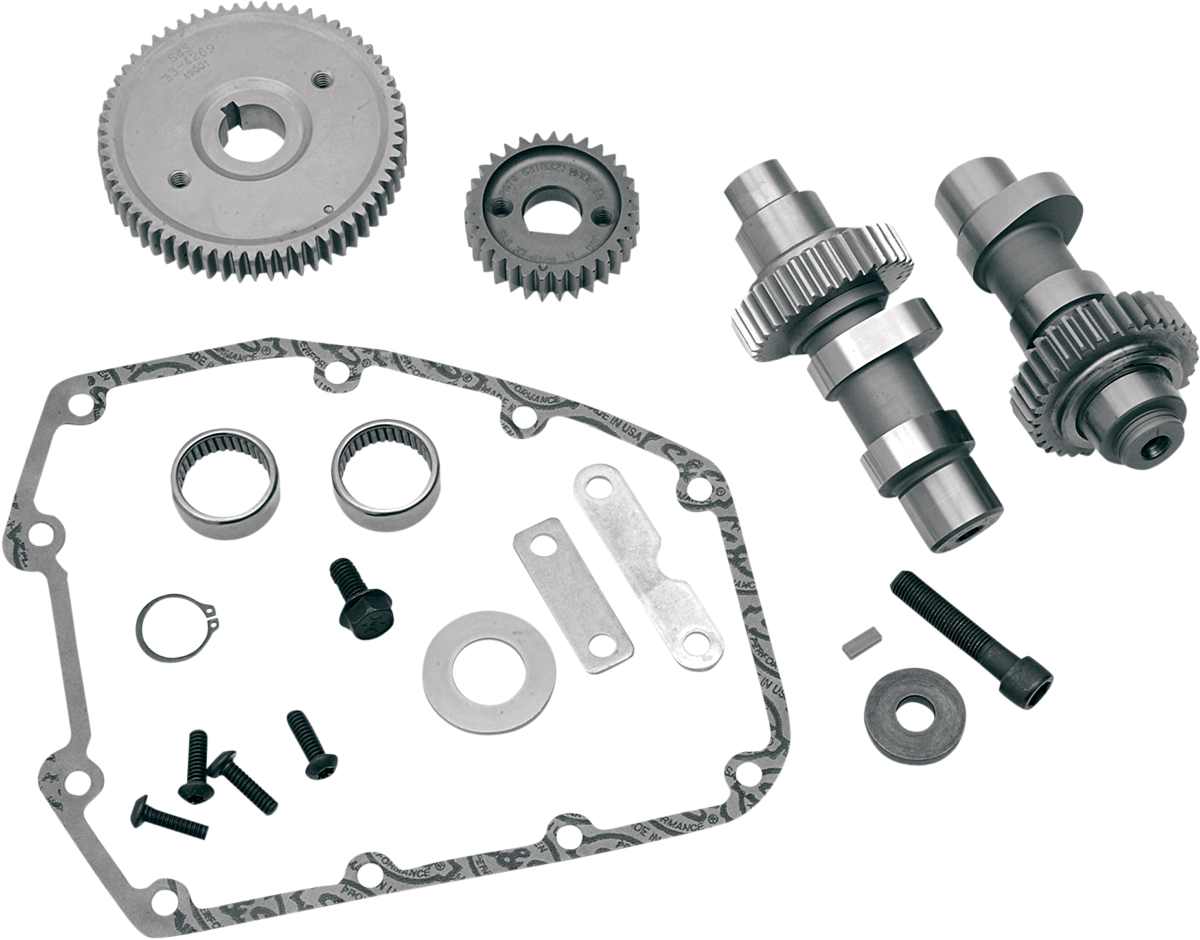

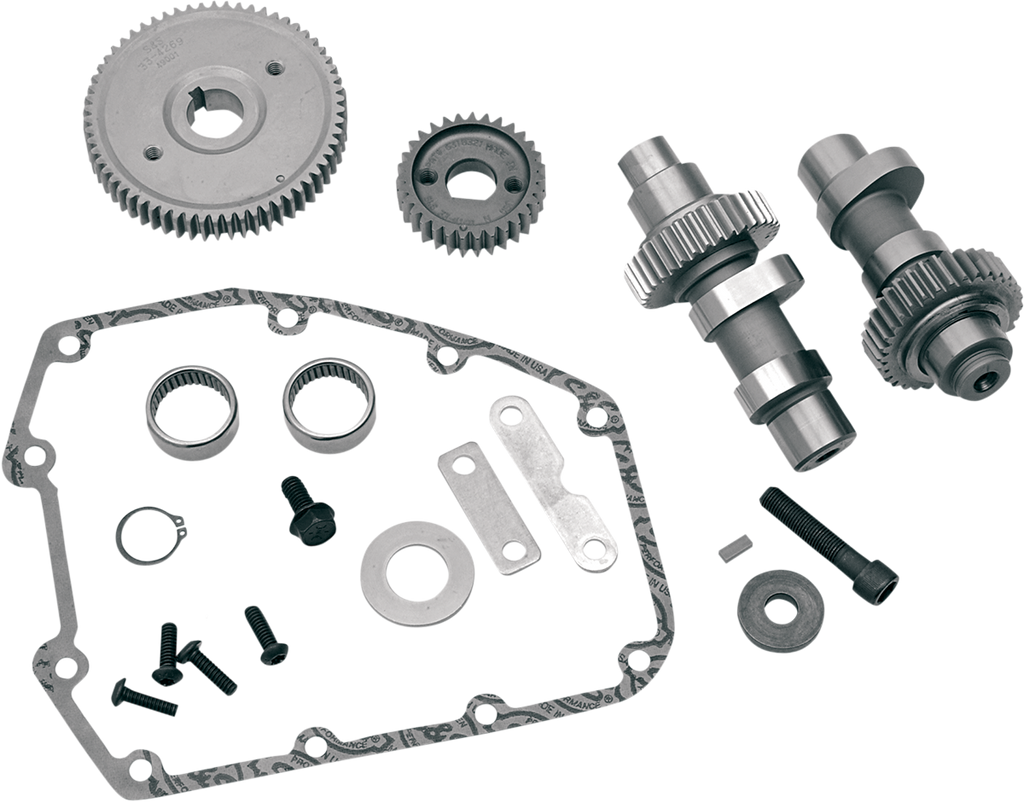

  • S&S CYCLE Camshaft Kit - 570G Gear Drive - Twin Cam 33-5178 — image 2
S&S CYCLE Camshaft Kit - 570G Gear Drive - Twin Cam 33-5178

S&S Cycle

S&S CYCLE Camshaft Kit - 570G Gear Drive - Twin Cam 33-5178

33-5178
In stock
$948.95

Fitment check

Does this fit your bike?

Save the exact make, model, and year to check this product against AVT's reviewed fitment data.

Save my bike Ask AVT to verify fitment

A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.

Camshaft Kit - 570G Gear Drive - Twin Cam

Features

  • Designed for 88" to 103" CID engines with compression ratios between 9:1 and 10:1
  • Strongest from 3200-3700 rpm
  • Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain drive
  • Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes resulting in higher cam lifts
  • Material must be removed from inner surface of stock gear cover to install
  • A hydraulic press and other professional level tools required to install kit
  • S&S recommends that adjustable pushrod/cover kit be used
  • Cam bearings and gasket must be replaced when installing new cams
  • Kit includes camshafts, gearcover gasket, bearings, oil passage block off kit, retaining ring, o-ring, inner and outer gears
  • Made in the USA
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.

Specifications

  • Application: Exhaust
  • Exhaust Close: 20°
  • Exhaust Duration: 255°
  • Exhaust Lift: 0.570"
  • Exhaust Lift at TDC: 0.179"
  • Exhaust Lobe Centerline: 107.5°
  • Exhaust Open: 55°
  • Grind: 570 Series
  • Intake Close: 40°
  • Intake Duration: 240°
  • Intake Lift: 0.570"
  • Intake Lift at TDC: 0.187"
  • Intake Lobe Centerline: 100°
  • Intake Open: 20°
  • Product Name: Camshaft Kit
  • Riding Style: Street
  • Type: Gear
  • Units: Kit
  • Country of Origin: US
  • Package Dimensions: 11.8 L × 9.2 W × 4.5 H in
  • Shipping Weight: 5.7 lb
Manufacturer fitment

S&S CYCLE · 33-5178

Fits

  • Harley-Davidson 15th Anniversary Fat Boy FLSTF, 2005.
  • Harley-Davidson Electra Glide Ultra Classic FLHTCU, 1999.
  • Harley-Davidson FLHR Road King, 1999-2006.
  • Harley-Davidson FLHRCI Road King Classic, 1999-2006.
  • Harley-Davidson FLHRI Road King, 2000-2006.
  • Harley-Davidson FLHRS Road King Custom, 2004-2006.
  • Harley-Davidson FLHRSI Road King Custom, 2004-2006.
  • Harley-Davidson FLHT Electra Glide Standard, 1999-2006.
  • Harley-Davidson FLHTC Electra Glide Classic, 1999-2005.
  • Harley-Davidson FLHTCI Electra Glide Classic, 1999-2006.
  • Harley-Davidson FLHTCUI Electra Glide Ultra Classic, 1999-2006.
  • Harley-Davidson FLHTI Electra Glide Standard, 2003-2006.
  • Harley-Davidson FLHX Street Glide, 2006.
  • Harley-Davidson FLHXI Street Glide, 2006.
  • Harley-Davidson FLST Heritage Softail, 2006.
  • Harley-Davidson FLSTC Heritage Softail Classic, 2000-2006.
  • Harley-Davidson FLSTCI Heritage Softail Classic, 2001-2006.
  • Harley-Davidson FLSTF Fat Boy, 2000-2006.
  • Harley-Davidson FLSTFI Fat Boy, 2002-2006.
  • Harley-Davidson FLSTI Heritage Softail, 2006.
  • Harley-Davidson FLSTN Softail Deluxe, 2005-2006.
  • Harley-Davidson FLSTNI Softail Deluxe, 2005-2006.
  • Harley-Davidson FLSTS Heritage Springer, 2000-2003.
  • Harley-Davidson FLSTSC Softail Springer Classic, 2005-2006.
  • Harley-Davidson FLSTSCI Softail Springer Classic, 2005-2006.
  • Harley-Davidson FLSTSI Heritage Springer, 2001-2003.
  • Harley-Davidson FLTR Road Glide, 1999-2002.
  • Harley-Davidson FLTRI Road Glide, 1999-2006.
  • Harley-Davidson FXD Dyna Super Glide, 1999-2005.
  • Harley-Davidson FXDC Super Glide Custom, 2005.
  • Harley-Davidson FXDCI Super Glide Custom, 2005.
  • Harley-Davidson FXDI Dyna Super Glide, 2004-2005.
  • Harley-Davidson FXDL Dyna Low Rider, 1999-2005.
  • Harley-Davidson FXDLI Dyna Low Rider, 2004-2005.
  • Harley-Davidson FXDS-Conv Dyna Convertible, 1999-2000.
  • Harley-Davidson FXDWG Dyna Wide Glide, 1999-2005.
  • Harley-Davidson FXDWGI Dyna Wide Glide, 2004-2005.
  • Harley-Davidson FXDX Dyna Super Glide Sport, 1999-2005.
  • Harley-Davidson FXDXI Dyna Super Glide Sport, 2004-2005.
  • Harley-Davidson FXDXT Dyna Super Glide T-Sport, 2001-2003.
  • Harley-Davidson FXST Softail Standard, 2000-2006.
  • Harley-Davidson FXSTB Night Train, 2000-2006.
  • Harley-Davidson FXSTBI Night Train, 2001-2006.
  • Harley-Davidson FXSTD Softail Deuce, 2000-2006.
  • Harley-Davidson FXSTDI Softail Deuce, 2001-2006.
  • Harley-Davidson FXSTI Softail Standard, 2001-2006.
  • Harley-Davidson FXSTS Springer Softail, 2000-2006.
  • Harley-Davidson FXSTSI Springer Softail, 2001-2006.
  • Harley-Davidson Road King EFI FLHR, 1999.
