S&S CYCLE Camshaft Kit - 540G Gear Drive - M8 330-0715
$465.95
Skip to product information
S&S CYCLE Camshaft Kit - 540G Gear Drive - M8 330-0715
$465.95
Fitment check
Does this fit your bike?
A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.
Camshaft Kit - 540G Gear Drive - M8
Features
- Designed to add even more torque to your big bore M8, for those that keep the revs below 6000 rpm when combined with 124" and larger big bore kits
- Requires the use of adjustable pushrods and heavy duty springs (sold separately)

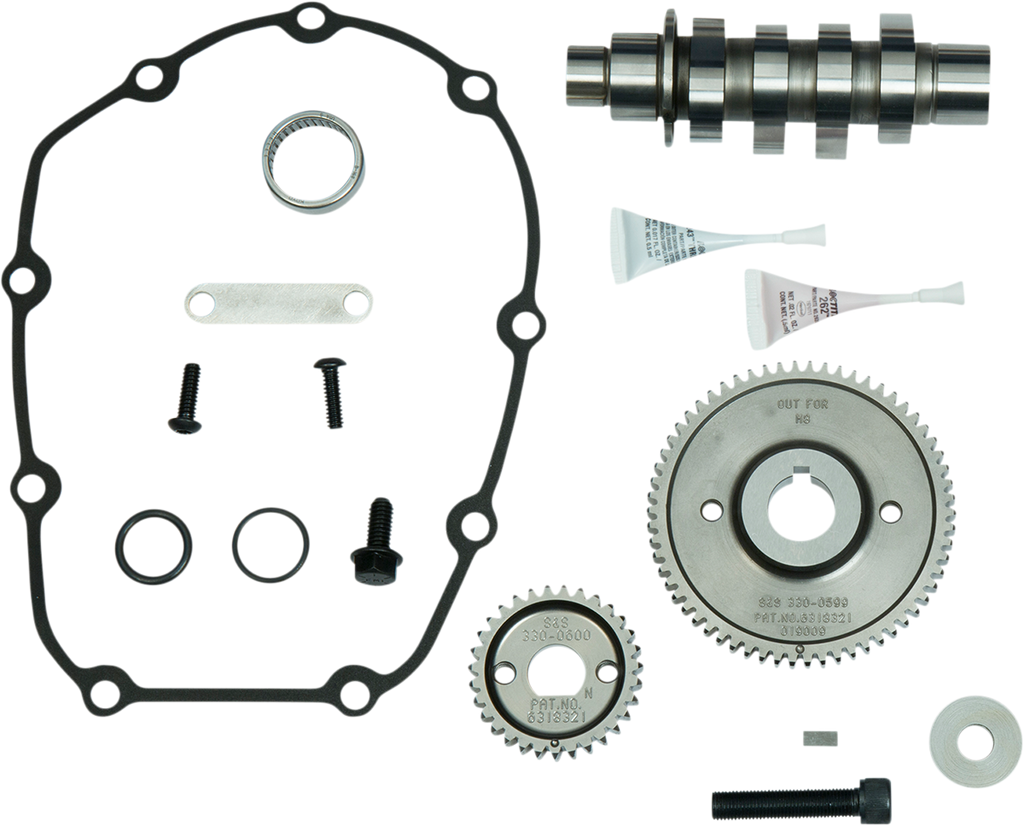

- Kit includes all required bearings, o-rings, gears and hardware
- Provides improved valve timing accuracy
- Made in the USA
Specifications
- Application: Exhaust
- Exhaust Close: 33.9° Front, 26.9° Rear
- Exhaust Duration: 235.1° Front, 244.6° Rear
- Exhaust Lift: 0.540"
- Exhaust Lift at TDC: 0.262" Front, 0.216" Rear
- Exhaust Lobe Centerline: 83.6° Front, 95.4° Rear
- Exhaust Open: 21.2° Front, 37.7° Rear
- Grind: 540G
- Intake Close: 30.6° Front, 28.7° Rear
- Intake Duration: 228.3° Front, 223.6° Rear
- Intake Lift: 0.540"
- Intake Lift at TDC: 0.175" Front, 0.161" Rear
- Intake Lobe Centerline: 96.4° Front, 96.9° Rear
- Intake Open: 17.7° Front, 14.9° Rear
- Model: Big Bore Torque
- Product Name: Camshaft
- Riding Style: Street
- Type: Gear
- Units: Kit
- Country of Origin: US
- Package Dimensions: 11.48 L × 9.2 W × 4.59 H in
- Shipping Weight: 4.1 lb
