Camshaft Kit - 510G Gear Drive - Twin Cam
Features
- Cams designed as bolt-in cam for 88", 95", 96" and 103" engines with compression ratios below 9.7:1

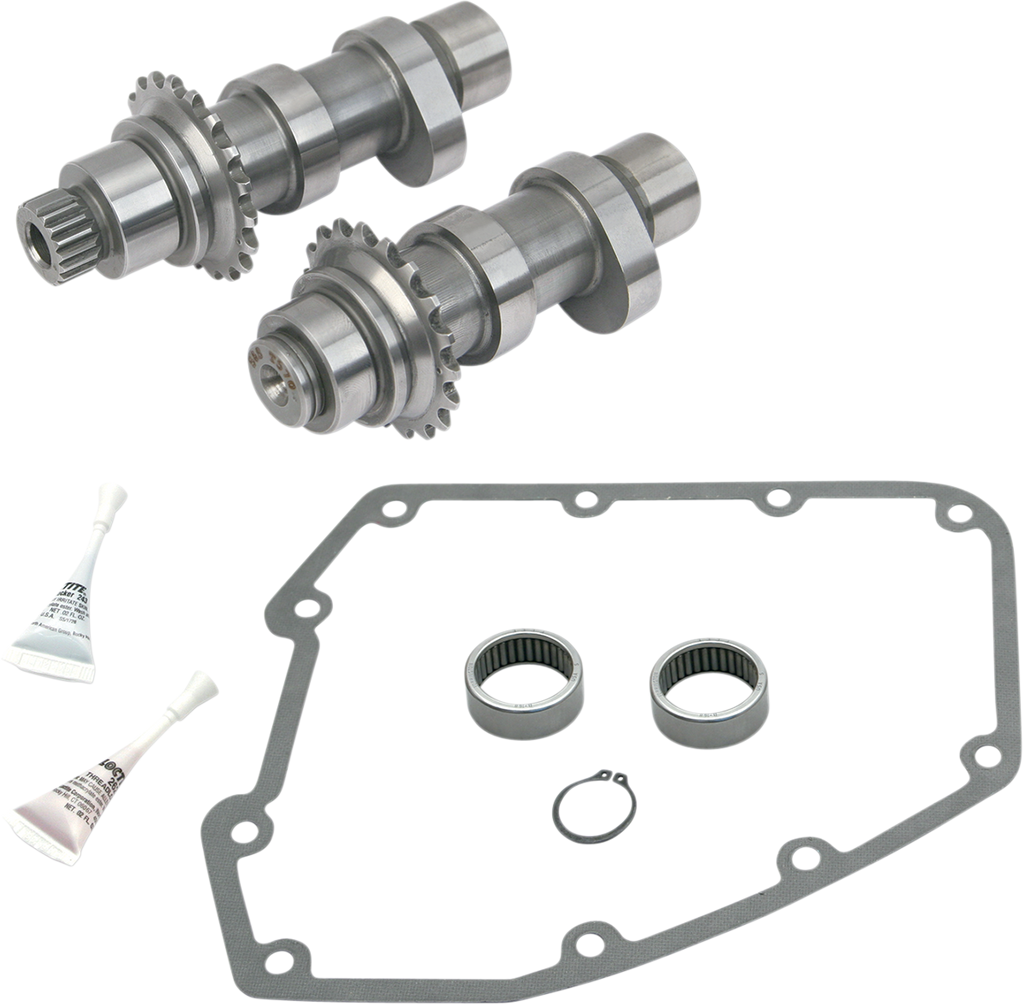

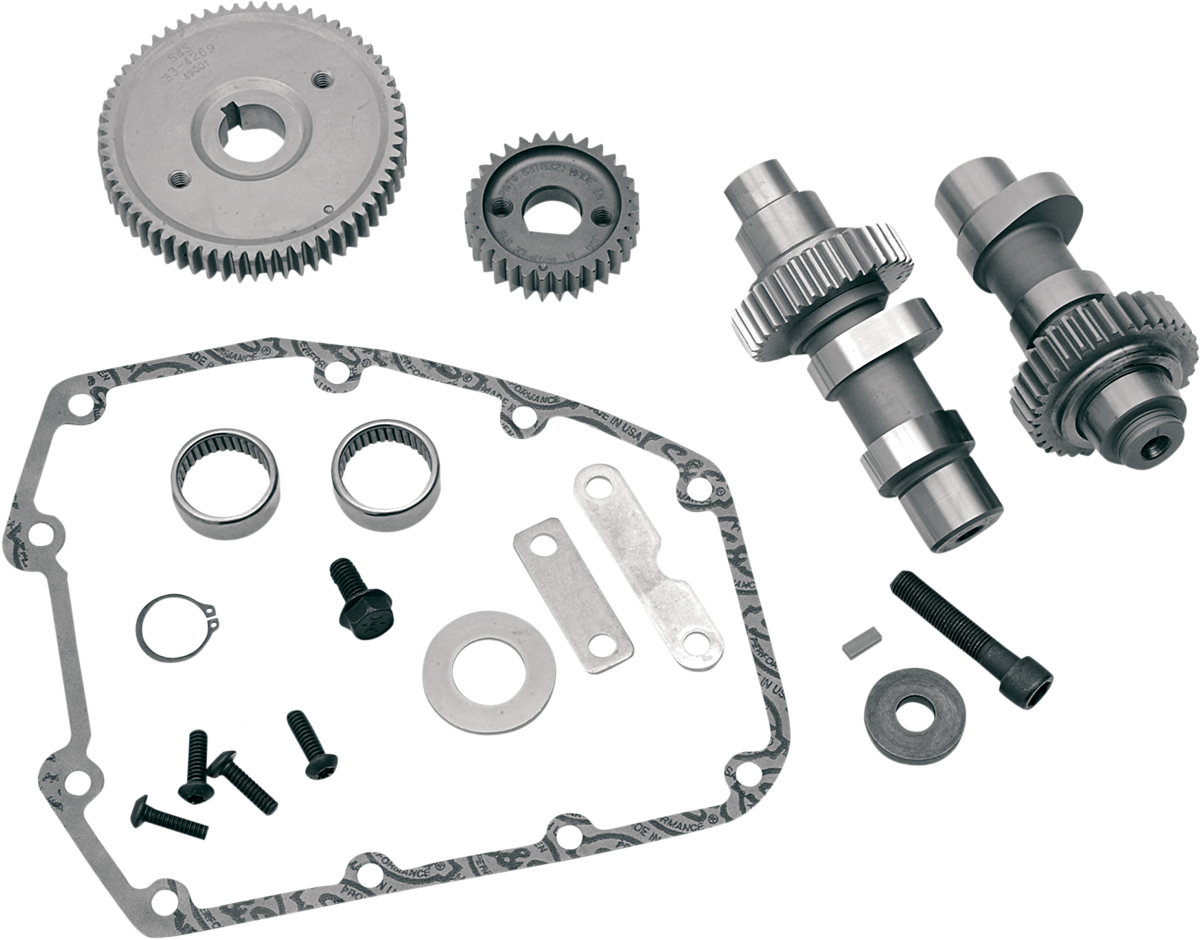

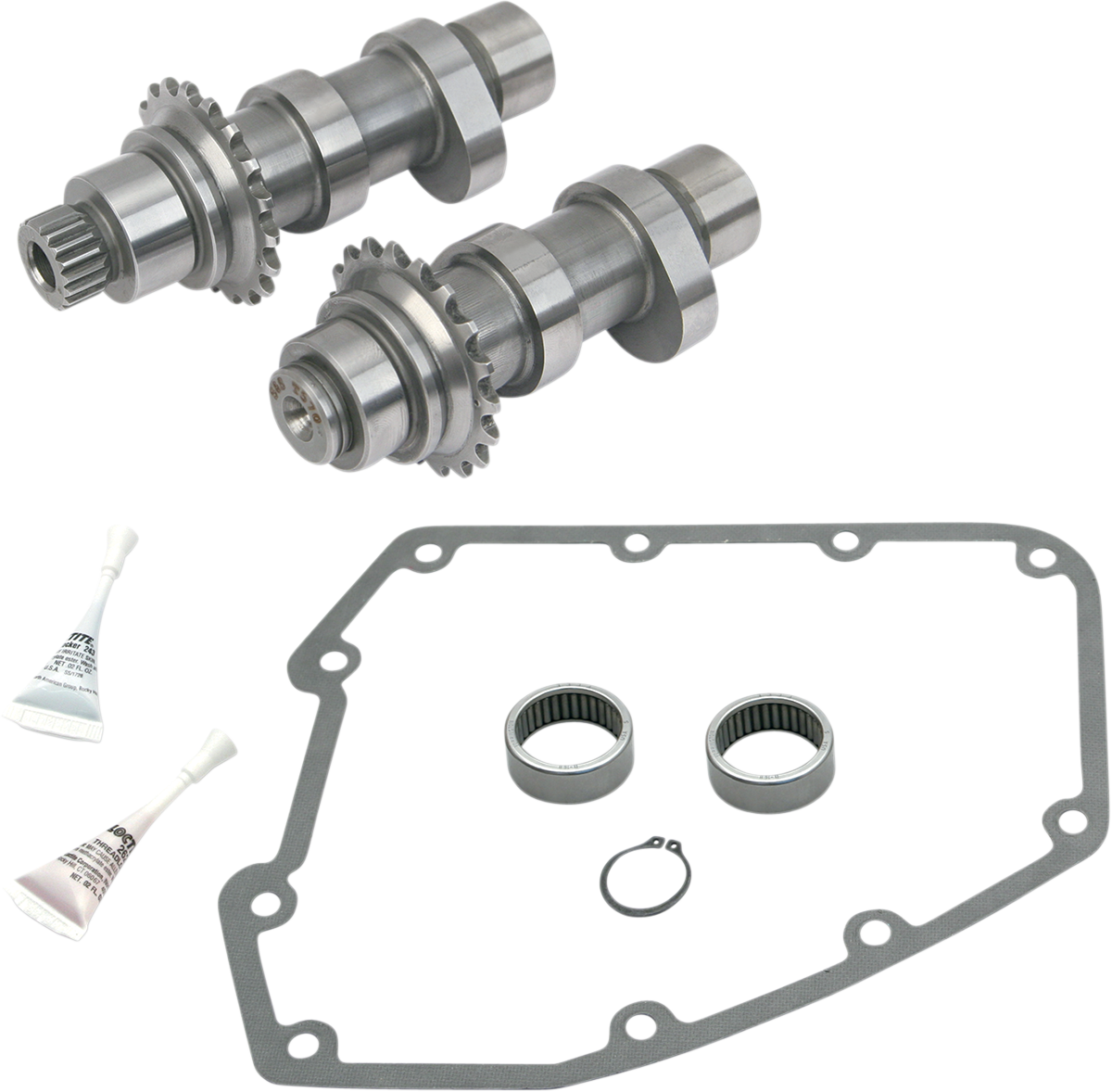

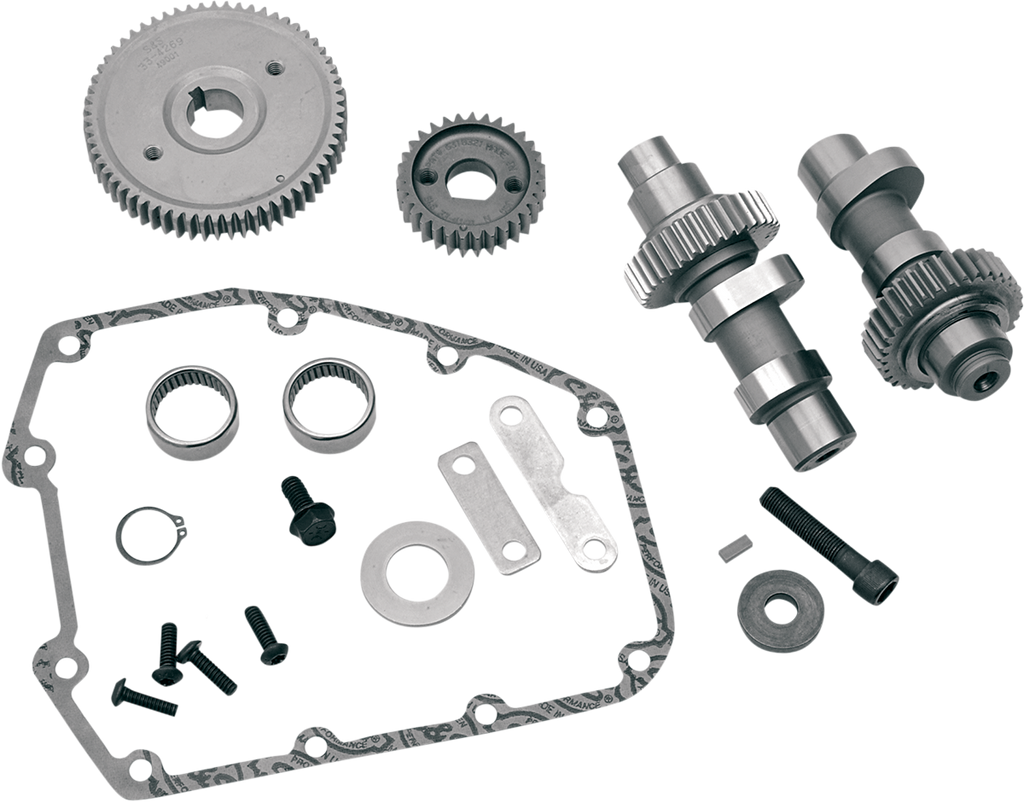

- Kit includes camshafts with inner gears, outer cam drive gear kit and camshaft installation kit: gearcover gasket, bearings, oil passage block off kit, retaining ring. o-ring and instructions
- Stock pushrods and valve springs are acceptable
- Strongest from 3000-5500 RPM
- Made in the USA
Specifications
- Application: Exhaust
- Exhaust Close: 20°
- Exhaust Duration: 252°
- Exhaust Lift: 0.510"
- Exhaust Lift at TDC: 0.178"
- Exhaust Lobe Centerline: 106°
- Exhaust Open: 52°
- Grind: 510 Series
- Intake Close: 38°
- Intake Duration: 238°
- Intake Lift: 0.510"
- Intake Lift at TDC: 0.187"
- Intake Lobe Centerline: 99°
- Intake Open: 20°
- Product Name: Camshaft Kit
- Riding Style: Street
- Type: Gear
- Units: Kit
- Country of Origin: US
- Package Dimensions: 11.61 L × 9.4 W × 4.64 H in
- Shipping Weight: 5.92 lb
