S&S CYCLE Camshaft - Easy Start - 557 Chain Drive - Twin Cam '07-'17 | Dyna '06 330-0053
$540.95
Skip to product information
S&S CYCLE Camshaft - Easy Start - 557 Chain Drive - Twin Cam '07-'17 | Dyna '06 330-0053
$540.95
Fitment check
Does this fit your bike?
A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.
Camshaft - Easy Start - 557 Chain Drive - Twin Cam '07-'17 | Dyna '06
Features
- Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- Designed for Tri-Glides and other heavy bikes
- Bolt in design

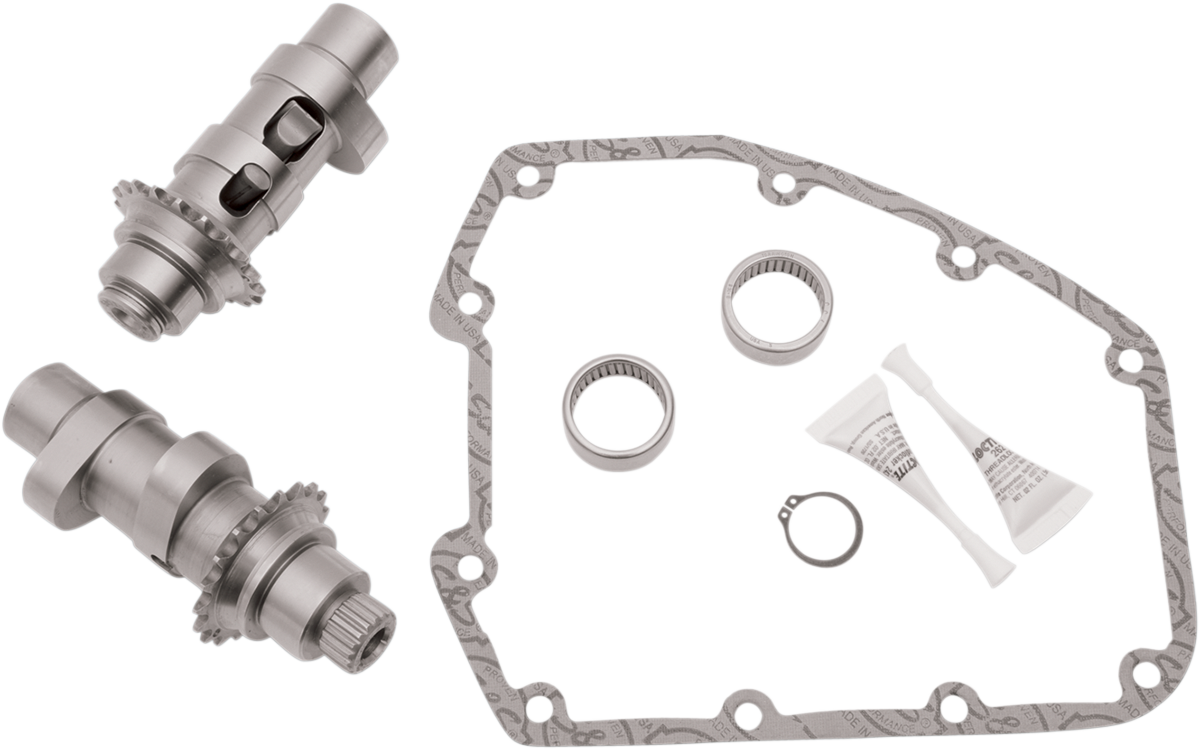

- Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Not for models with OEM compression releases.
Specifications
- Application: Exhaust
- Exhaust Close: 12°
- Exhaust Duration: 231°
- Exhaust Lift: 0.557"
- Exhaust Lift at TDC: 0.146"
- Exhaust Lobe Centerline: 103°
- Exhaust Open: 39°
- Grind: 557 Series
- Intake Close: 27°
- Intake Duration: 212°
- Intake Lift: 0.557"
- Intake Lift at TDC: 0.113"
- Intake Lobe Centerline: 100°
- Intake Open: 6°
- Model: Easy Start
- Product Name: Camshaft Kit
- Riding Style: Street
- Type: Chain
- Units: Kit
- Country of Origin: US
- Package Dimensions: 11.4 L × 9.03 W × 4.7 H in
- Shipping Weight: 4 lb
