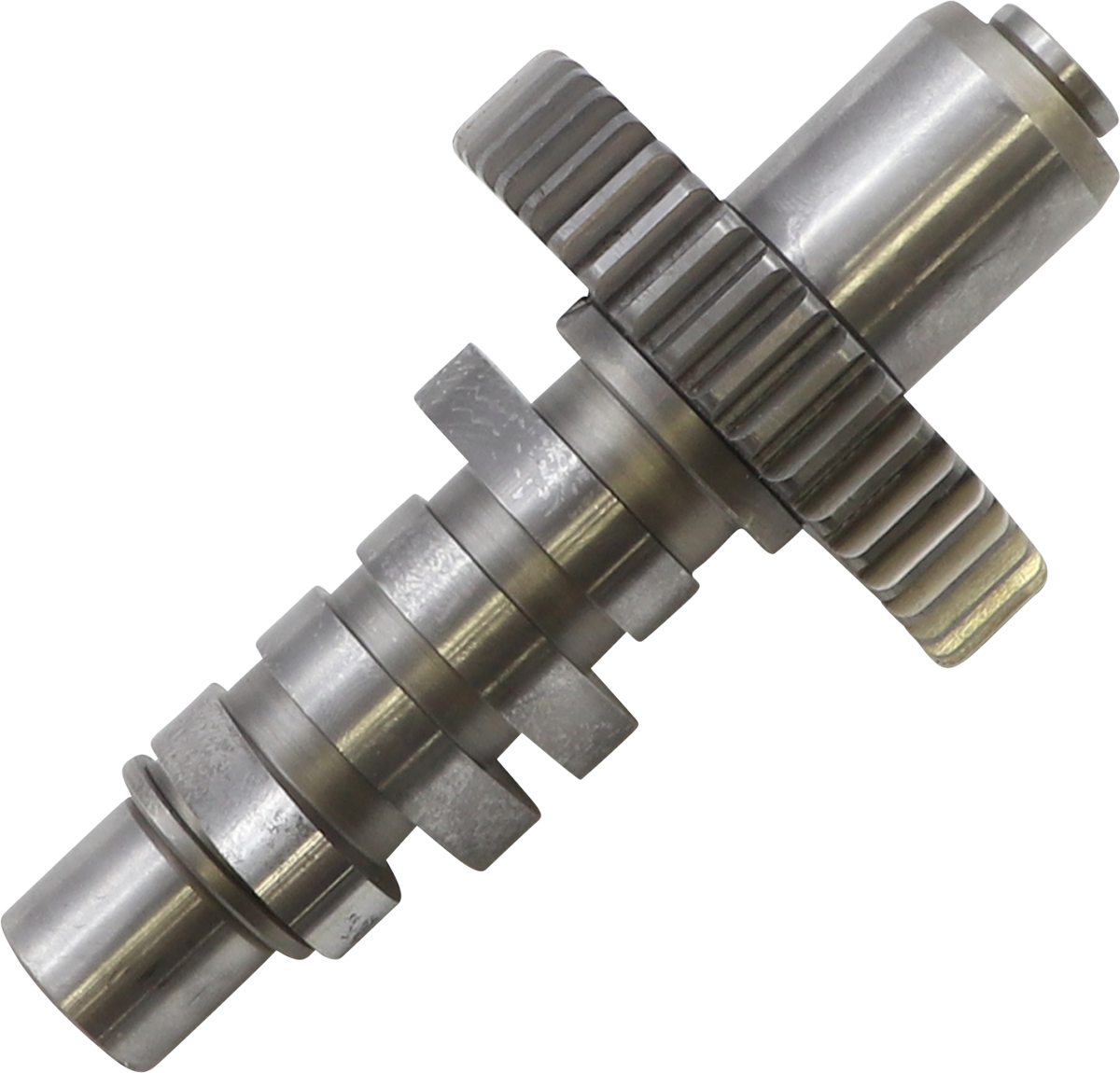

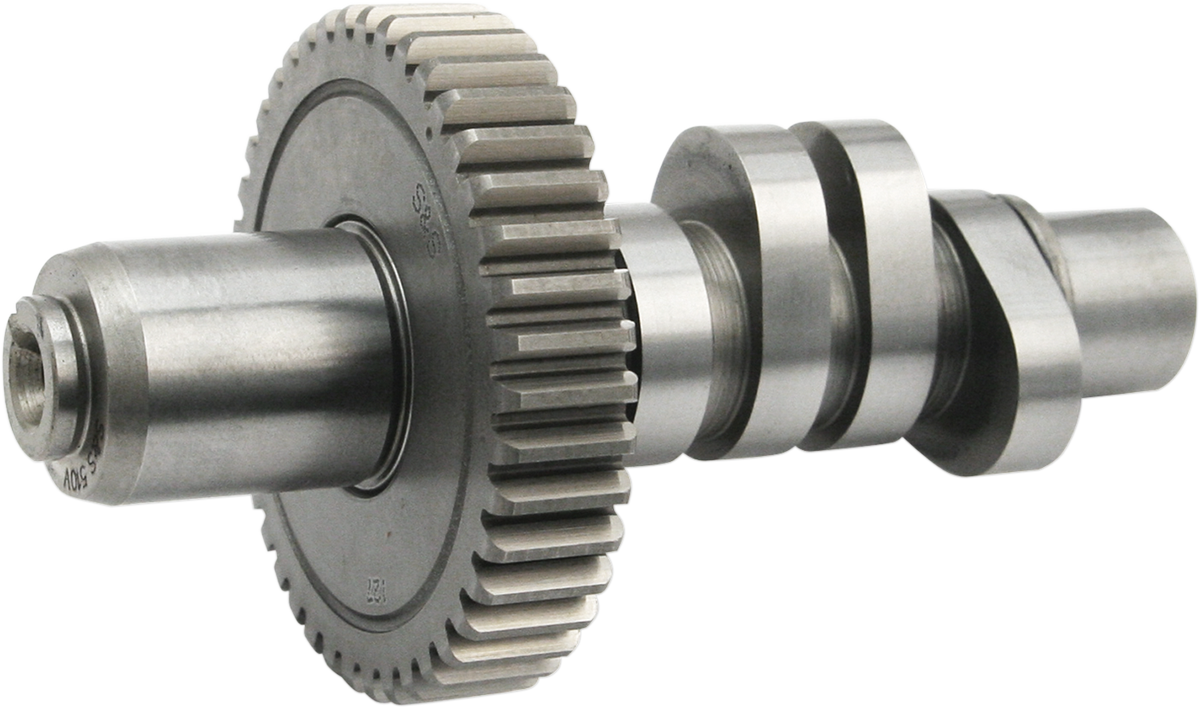

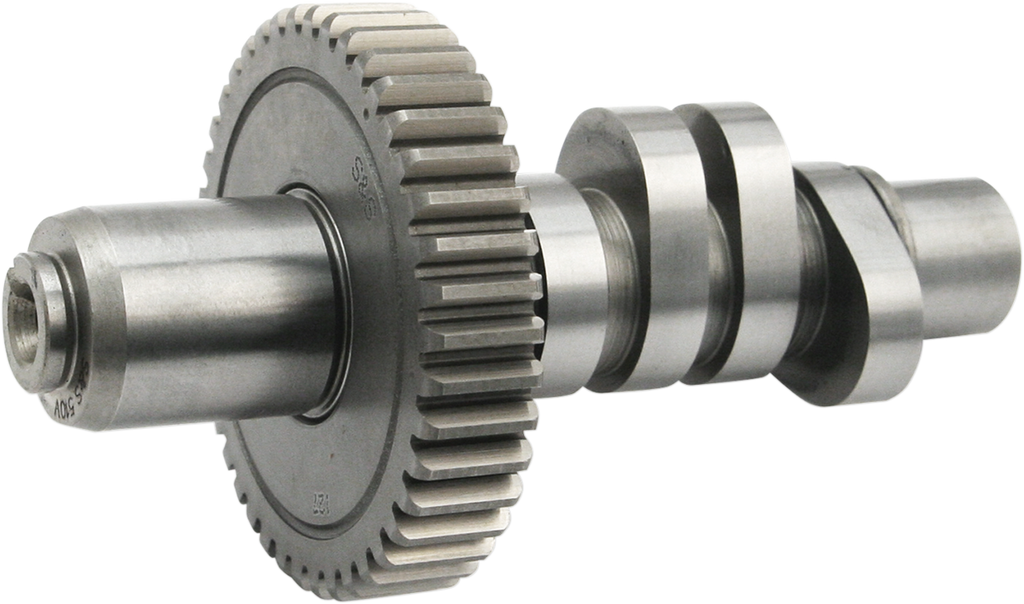

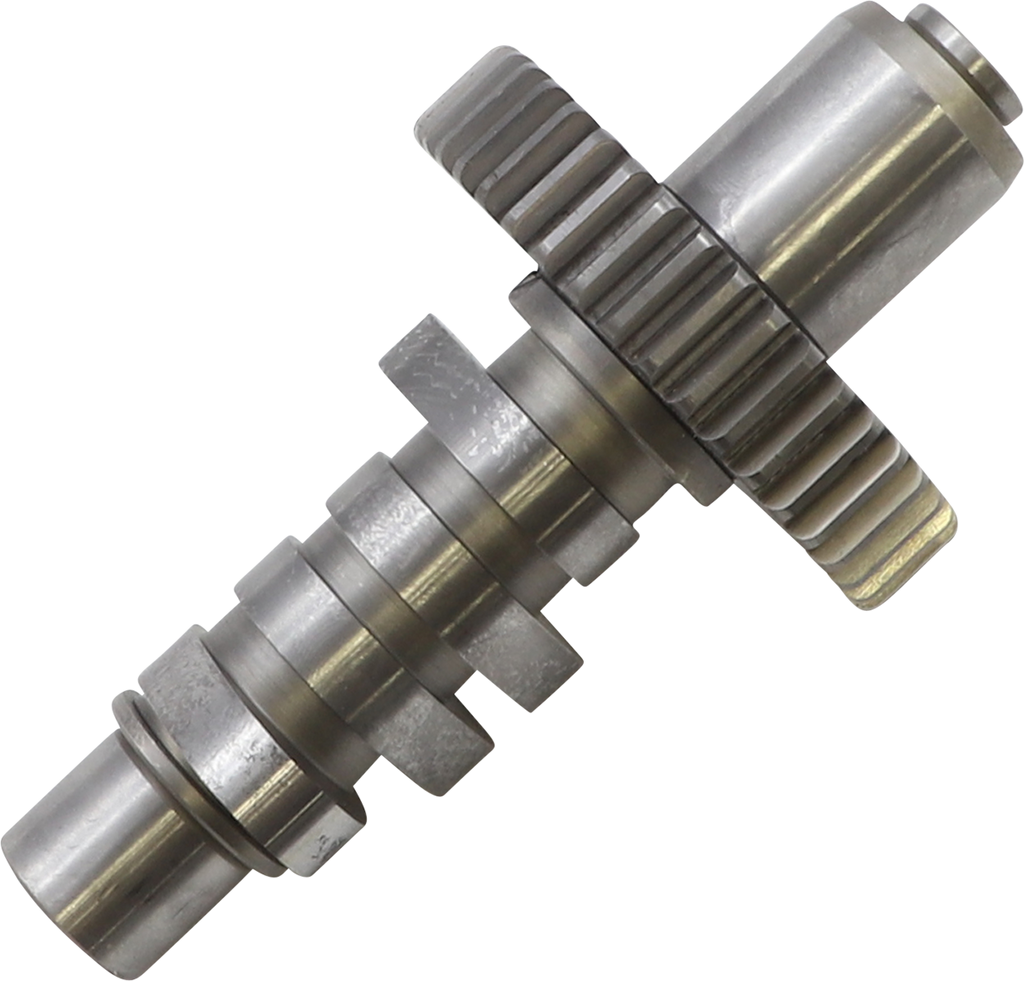

S&S CYCLE Camshaft - 585V - Evolution Big Twin 33-5109
$255.95
Skip to product information
S&S CYCLE Camshaft - 585V - Evolution Big Twin 33-5109
$255.95
Fitment check
Does this fit your bike?
A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.
Camshaft - 585V - Evolution Big Twin
Features
- S&S Cams are tested on the dyno, street and track before being offered to the public
- With hundreds of hours of testing on each cam, you know you are getting the best cam S&S can produce
- Versatile for 80" to 96" engines with 10.0:1 to 10.5:1 compression, also works well in larger engines with 9.5:1 to 10.0:1 compression ratios
- 3500 to 6000 rpm
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Specifications
- Application: Exhaust
- Color/Finish: Raw
- Exhaust Close: 20°
- Exhaust Duration: 260°
- Exhaust Lift: 0.585"
- Exhaust Lift at TDC: 0.180"
- Exhaust Lobe Centerline: 110°
- Exhaust Open: 60°
- Grind: 585V
- Intake Duration: 245°
- Intake Lift: 0.585"
- Intake Lift at TDC: 0.186"
- Intake Lobe Centerline: 102.5°
- Intake Open: 20°
- Product Name: Camshaft
- Riding Style: Street
- Type: Gear
- Units: Each
- Country of Origin: US
- Package Dimensions: 6.11 L × 3.26 W × 3.25 H in
- Shipping Weight: 1.9 lb
