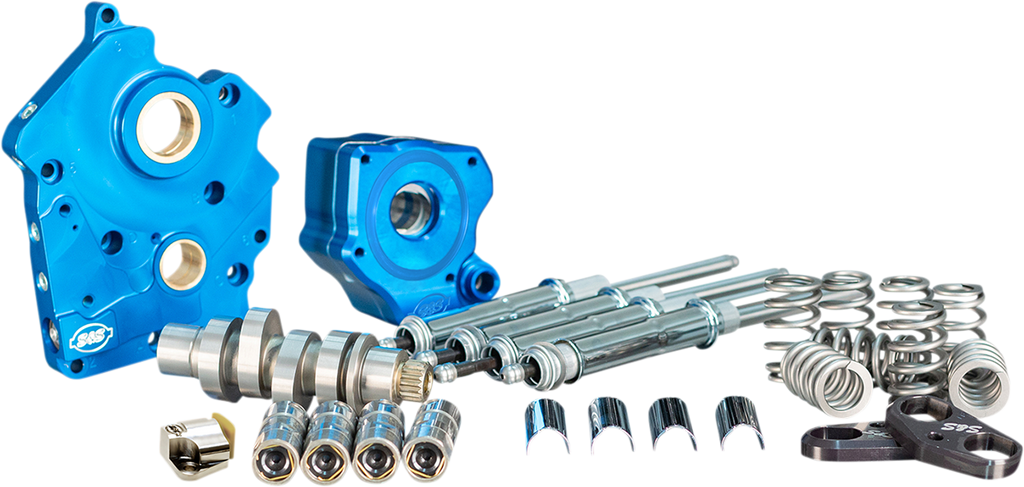

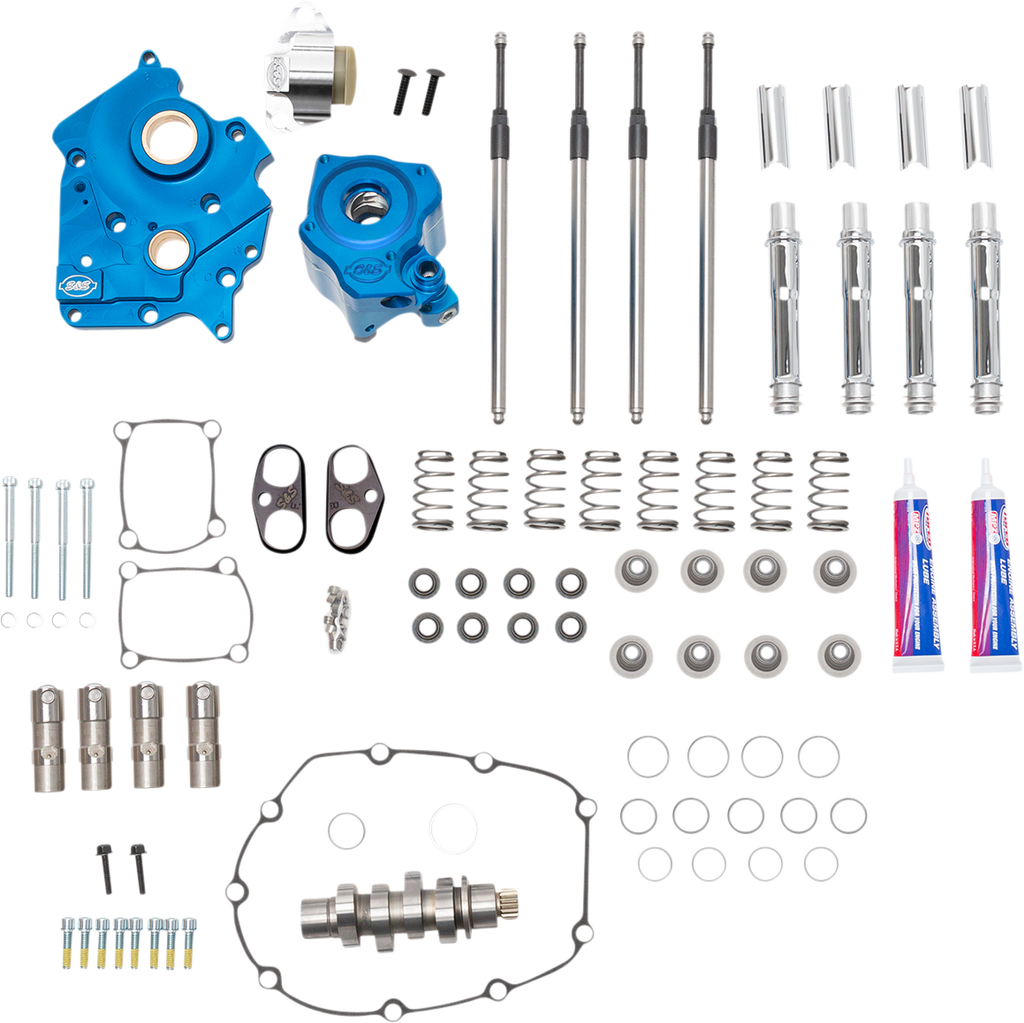

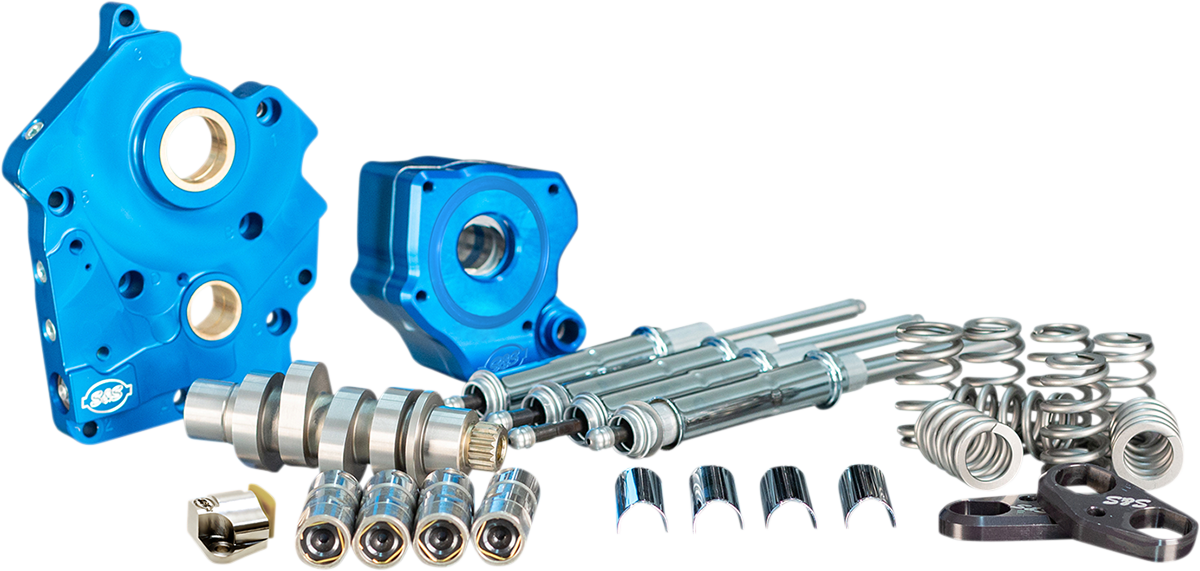

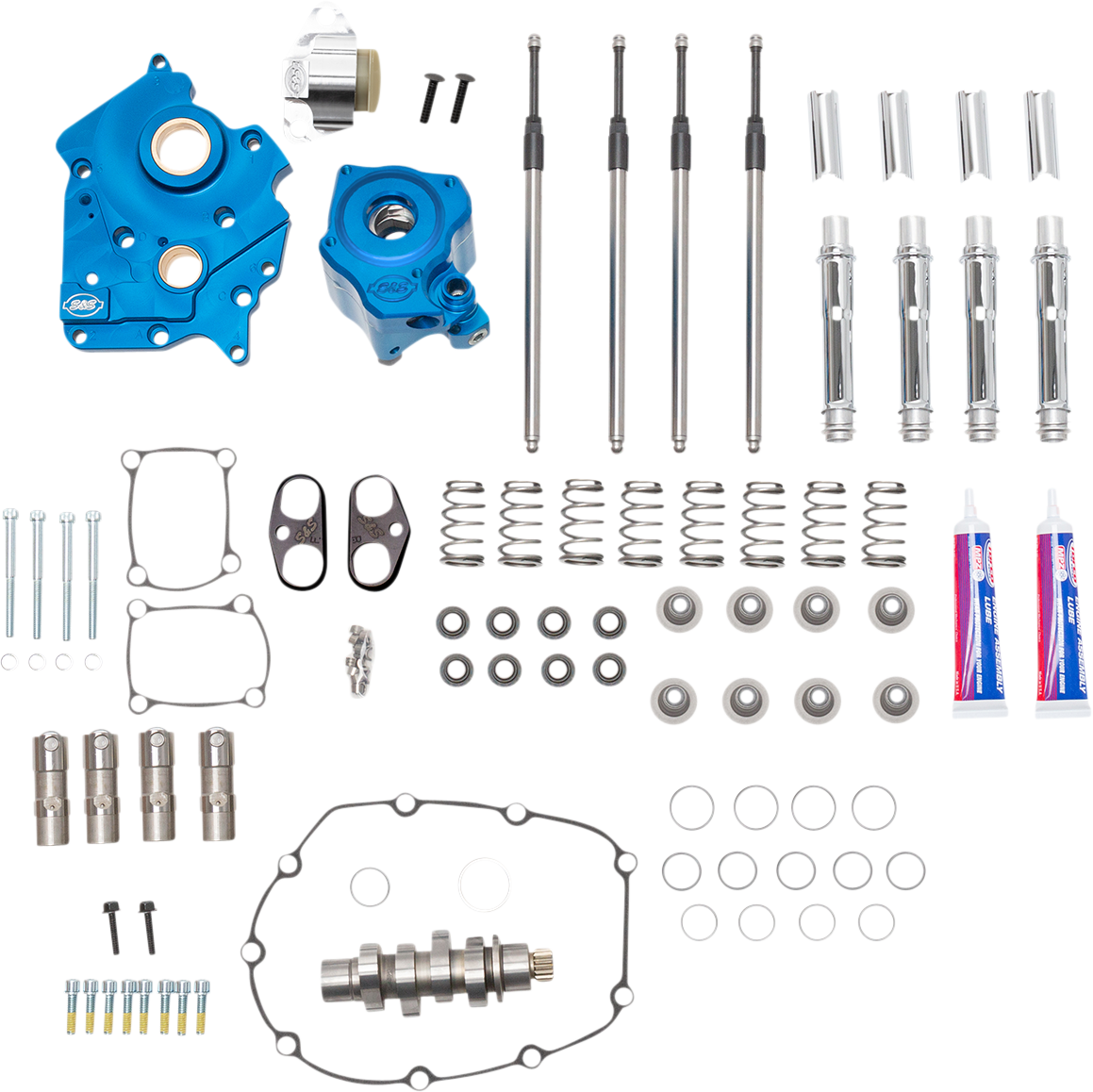

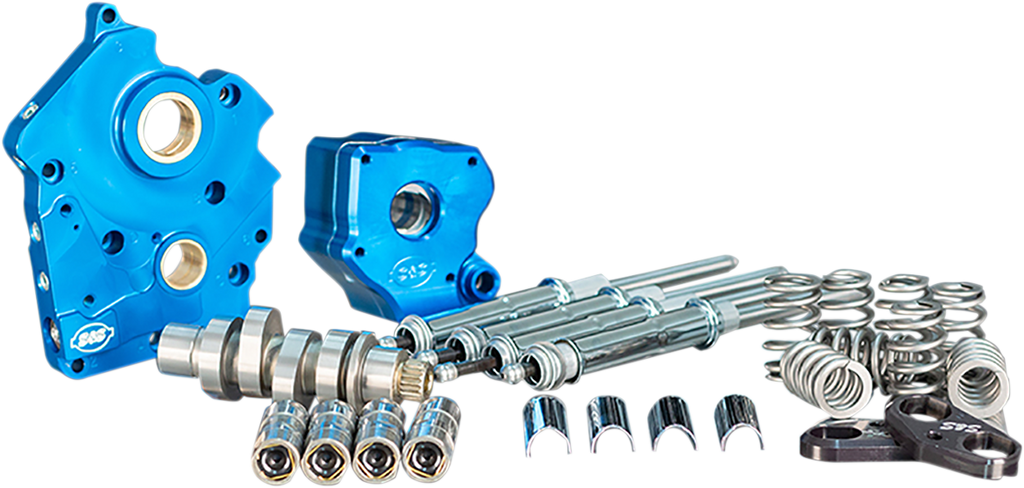

S&S CYCLE Cam Chest Kit with Plate - Chain Drive - Water Cooled - 540 Cam - Chrome Pushrods - M8 310-1116A

Cam Chest Kit with Plate - Chain Drive - Water Cooled - 540 Cam - Chrome Pushrods - M8

Features

• Precision machined from billet aluminum
• Blue anodized finish
• Passage plugs removable for servicing
• Independant scavenge sections for flywheel cavity and cam chest
• Debris screens in both pickups
• Magnet in cam chest to help stop debris from entering oil pump
• Increased flow capacity on both feed and scavenge side
• Adjustable pressure relief vale is adjustable with unit installed in engine
• Includes S&S high performance cam chain tensioner
• Quickee pushrods
• S&S precision tappets
• Hard anodized black coating
• Billet aluminum construction
• Stronger than stock material eliminates distortion
• Improves tappet stability in high lift and high rpm situations
• Includes all gaskets, bearings and hardware for installation
• Made in the USA
• Oil Pump/Cam Plate:
• Pushrods:
• Tappets:
• Tappet Cuffs:
• Cam:

Specifications

• Application: Water Cooled
• Exhaust Close: 33.9° Front, 26.9° Rear
• Exhaust Duration: 235.1° Front, 244.6° Rear
• Exhaust Lift: 0.540"
• Exhaust Lift at TDC: 0.262" Front, 0.216" Rear
• Exhaust Lobe Centerline: 83.6° Front, 95.4° Rear
• Exhaust Open: 21.2° Front, 37.7° Rear
• Features: Chrome Pushrod Tubes
• Grind: 540C
• Intake Close: 30.6° Front, 28.7° Rear
• Intake Duration: 228.3° Front, 223.6° Rear
• Intake Lift: 0.540"
• Intake Lift at TDC: 0.175" Front, 0.161" Rear
• Intake Lobe Centerline: 96.4° Front, 96.9° Rear
• Intake Open: 17.7° Front, 14.9° Rear
• Model: 540 Big Bore Torque
• Product Name: Camchest Kit
• Riding Style: Street
• Type: Chain
• Units: Kit
• Country of Origin: US
• Package Dimensions: 17.8 L × 11.51 W × 5.11 H in
• Shipping Weight: 11.95 lb
