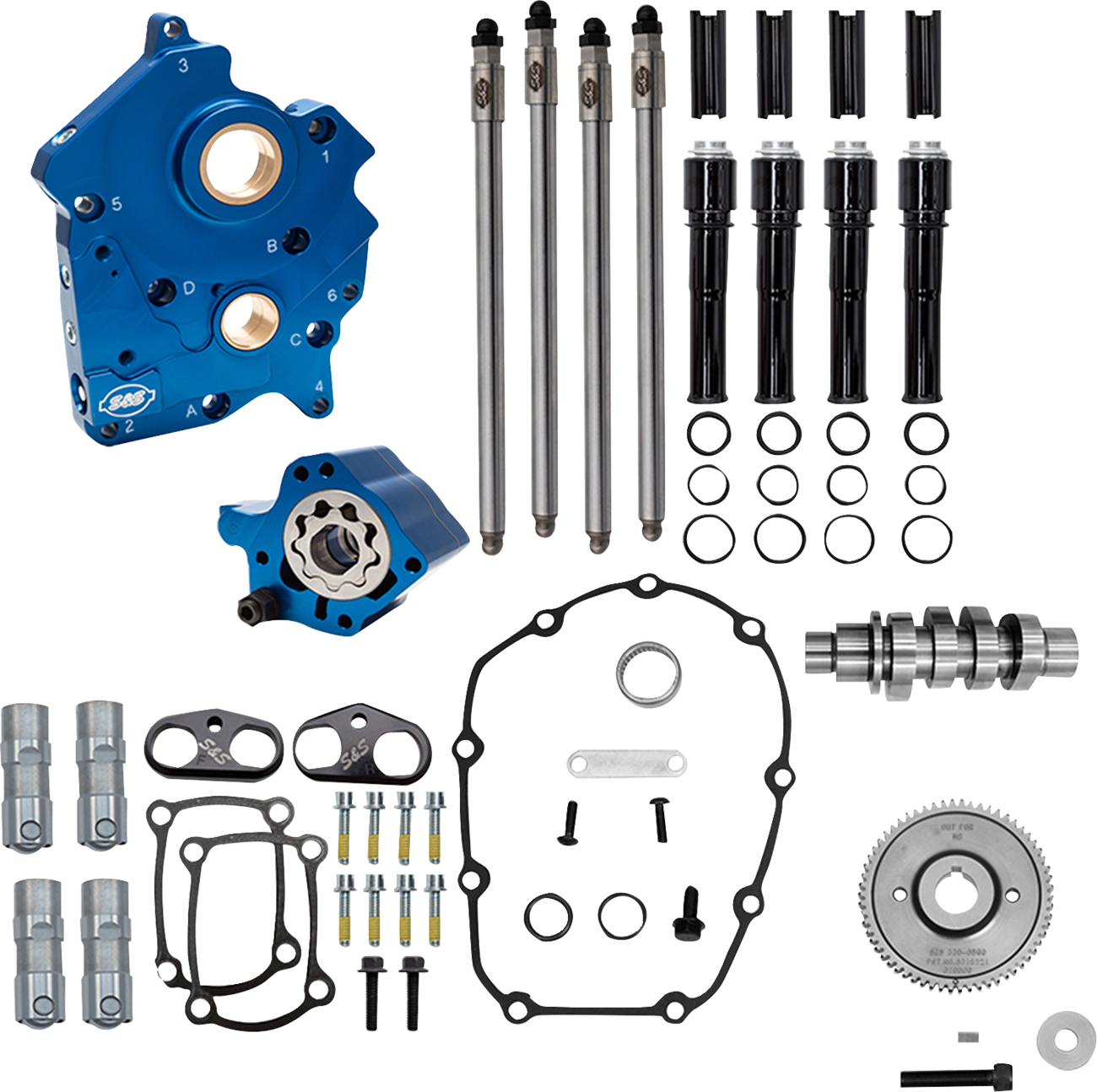

S&S CYCLE Cam Chest Kit - Water Cooled - Gear Drive - 496 Cam - Black Pushrod Tubes - M8 310-1387A

Cam Chest Kit - Water Cooled - Gear Drive - 496 Cam - Black Pushrod Tubes - M8

Features

• Improves cam timing accuracy and eliminates the stock cam chain tensioner
• All parts in each kit are matched to ensure superior quality, fit, finish and performance
• Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
• Passage plugs removable for servicing
• Independent scavenge sections for the flywheel cavity and cam chest
• Debris screens in both scavenge pickups
• Increased oil flow capacity on both the feed and scavenge sides
• Adjustable Pressure Relief Valve is adjustable with unit installed in engine
• Magnet in cam chest to help to stop debris from entering oil pump
• S&S Quickee Pushrods with finished pushrod tubes
• S&S premium tappets
• Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
• Improved tappet stability in high-lift and high-rpm situations
• Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
• Made in the USA
• Will fit M8 models with VVT.
• Outer drive gears included.

Specifications

• Application: Water Cooled
• Exhaust Close: 15°
• Exhaust Duration: 243°
• Exhaust Lift: 0.485"
• Exhaust Lift at TDC: 0.097"
• Exhaust Open: 48°
• Features: Black Pushrod Tubes
• Grind: 496 Series
• Intake Close: 40°
• Intake Duration: 227°
• Intake Lift: 0.485"
• Intake Lift at TDC: 0.072"
• Intake Open: 7°
• Product Name: Camchest Kit
• Riding Style: Street
• Type: Gear Drive
• Units: Kit
• Country of Origin: US
• Package Dimensions: 15 L × 10 W × 5 H in
• Shipping Weight: 9.2 lb
