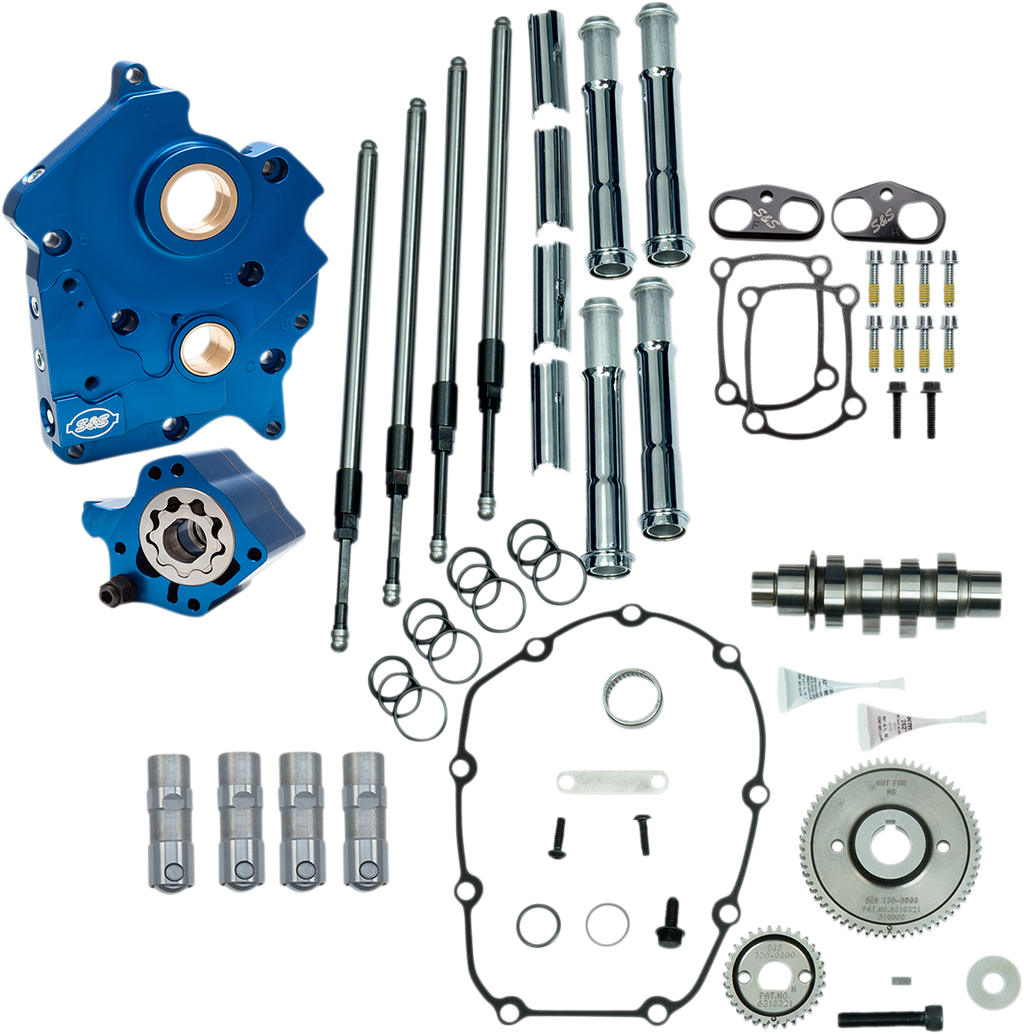

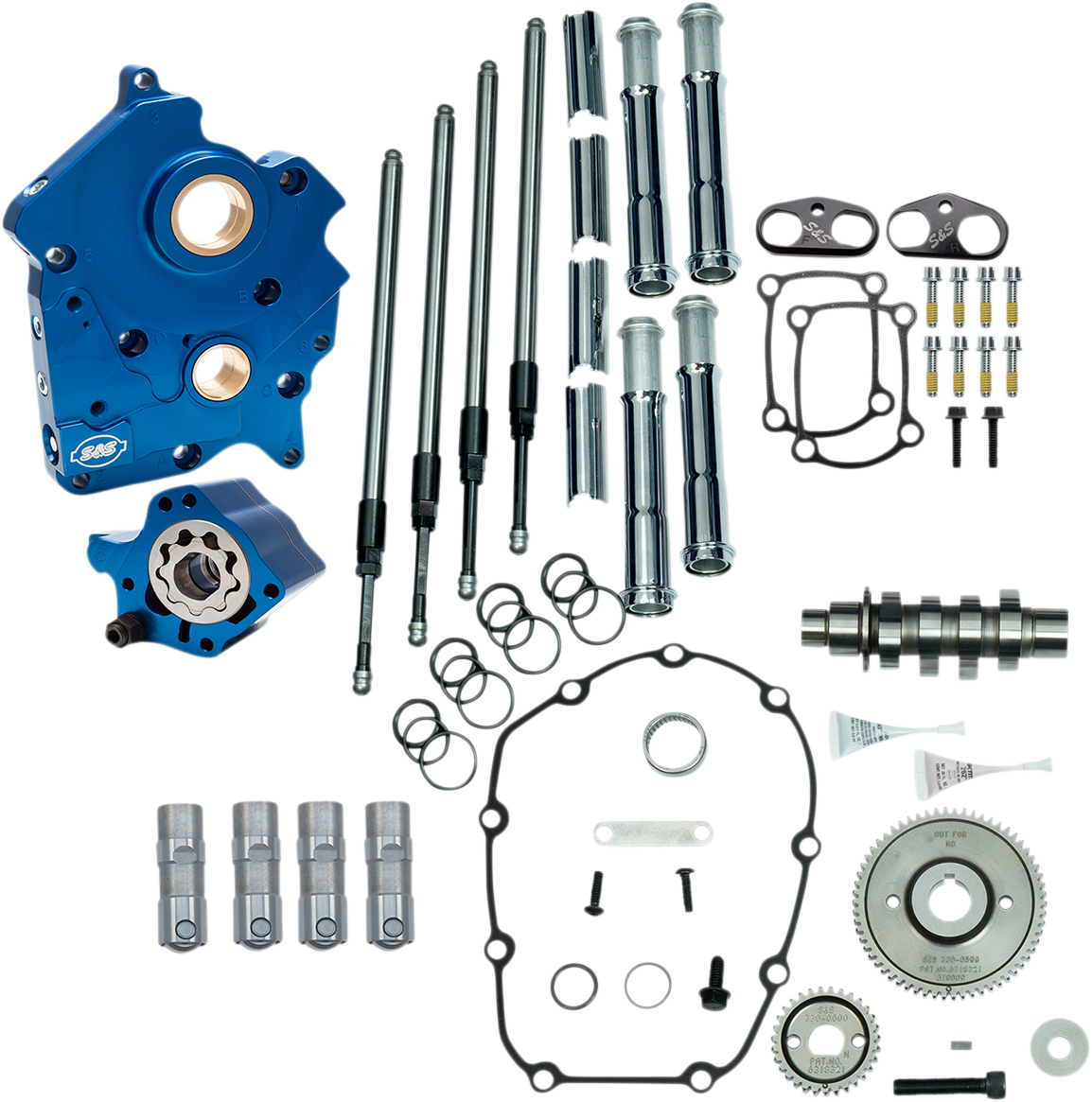

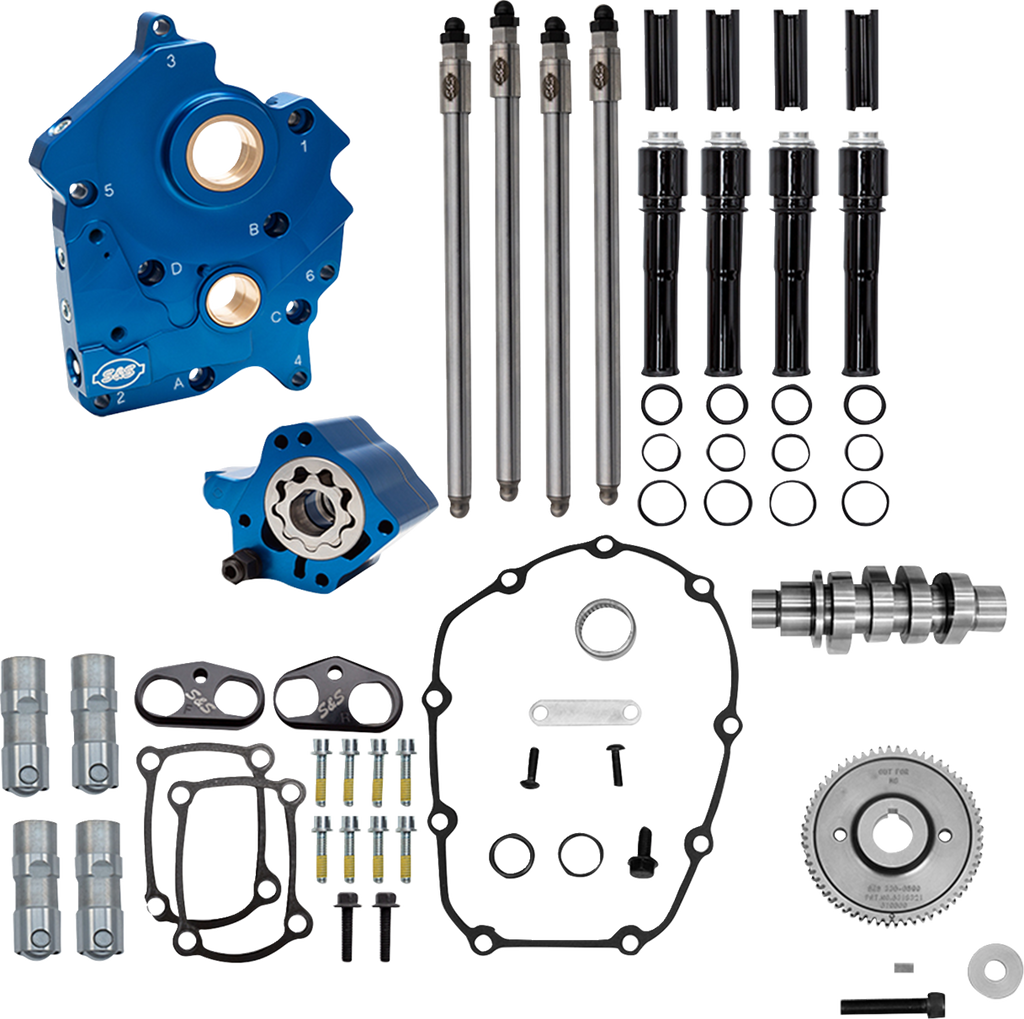

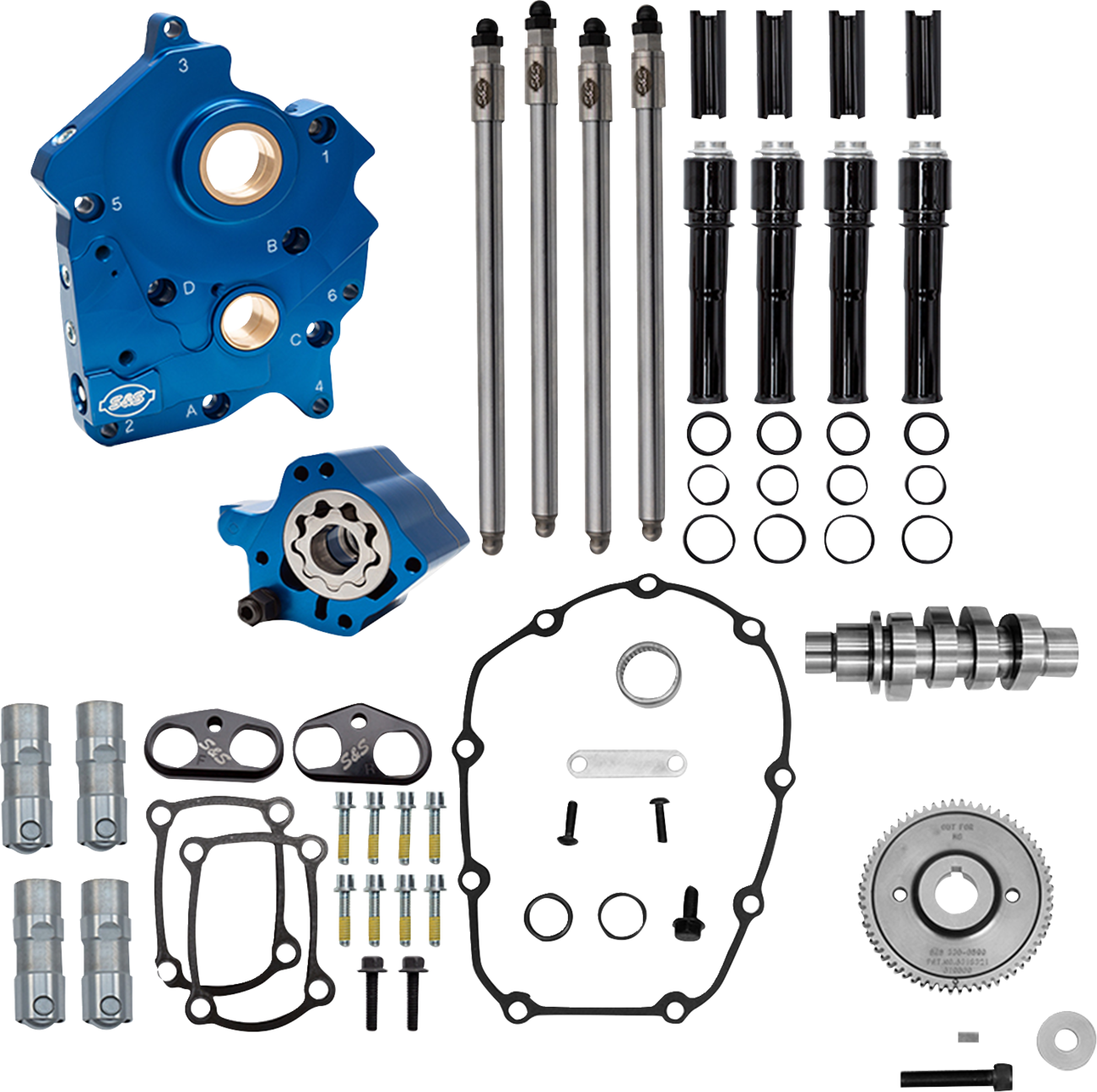

S&S CYCLE Cam Chest Kit - Oil Cooled - Gear Drive - 465 Cam - Chrome Pushrod Tubes - M8 310-1005B

Cam Chest Kit - Oil Cooled - Gear Drive - 465 Cam - Chrome Pushrod Tubes - M8

Features

• Improves cam timing accuracy and eliminates the stock cam chain tensioner
• All parts in each kit are matched to ensure superior quality, fit, finish and performance
• Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
• Passage plugs removable for servicing
• Independent scavenge sections for the flywheel cavity and cam chest
• Debris screens in both scavenge pickups
• Increased oil flow capacity on both the feed and scavenge sides
• Adjustable Pressure Relief Valve is adjustable with unit installed in engine
• Magnet in cam chest to help to stop debris from entering oil pump
• S&S Quickee Pushrods with finished pushrod tubes
• S&S premium tappets
• Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
• Improved tappet stability in high-lift and high-rpm situations
• Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
• Made in the USA
• Will fit M8 models with VVT.
• Outer drive gears included.

Specifications

• Application: Oil Cooled
• Exhaust Close: 8.8° Front, 5.8° Rear
• Exhaust Duration: 218.9°
• Exhaust Lift: 0.462"
• Exhaust Lift at TDC: 0.109° Front, 0.098° Rear
• Exhaust Lobe Centerline: 100.6° Front, 103.6° Rear
• Exhaust Open: 30.1° Front, 33.1° Rear
• Features: Chrome Pushrod Tubes
• Grind: 465G
• Intake Close: 14.6° Front, 14.4° Rear
• Intake Duration: 197.2°
• Intake Lift: 0.462"
• Intake Lift at TDC: 0.087° Front, 0.088° Rear
• Intake Lobe Centerline: 96.0° Front, 95.8° Rear
• Intake Open: 2.6° Front, 2.8° Rear
• Product Name: Camchest Kit
• Riding Style: Street
• Type: Gear Drive
• Units: Kit
• Country of Origin: US
• Package Dimensions: 16 L × 11 W × 4.63 H in
• Shipping Weight: 12.45 lb
