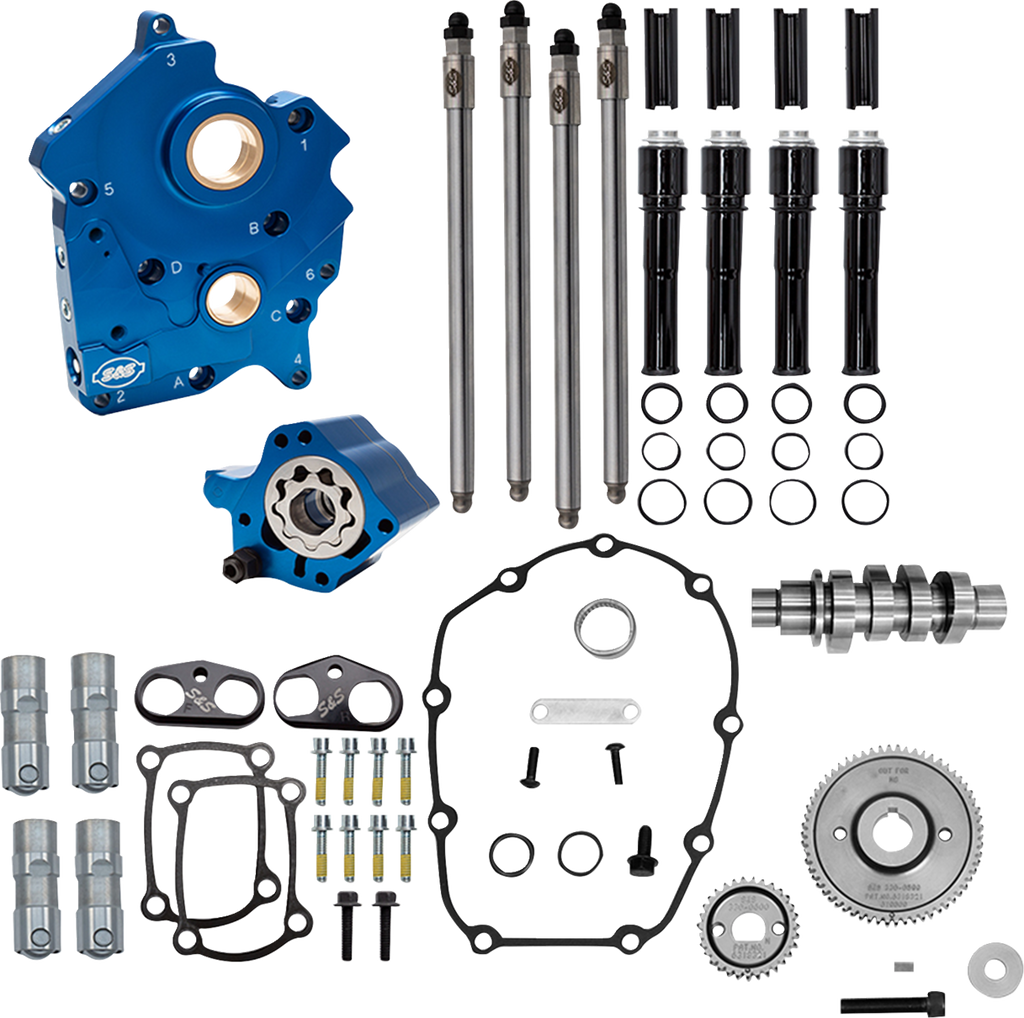

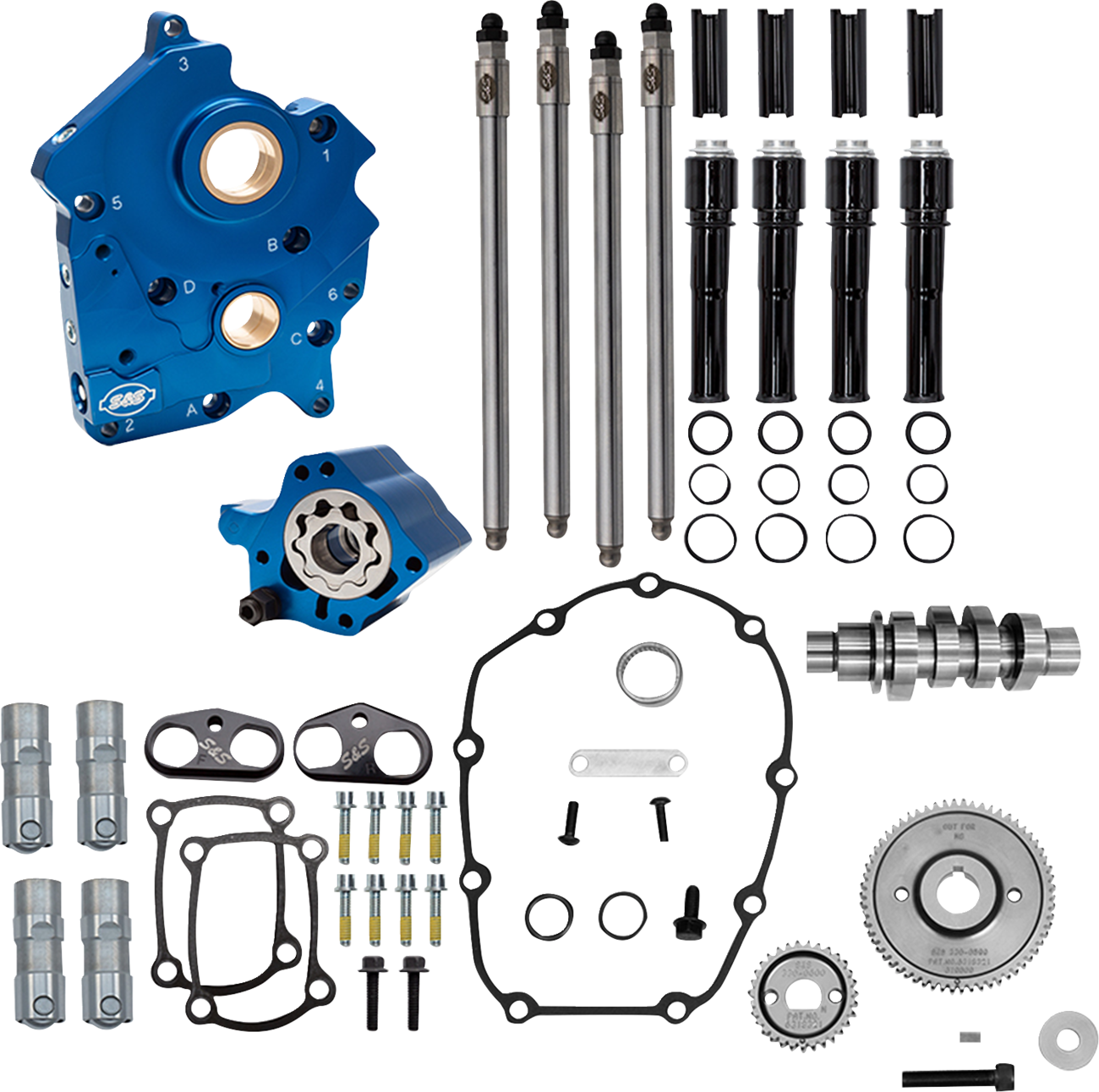

S&S CYCLE Cam Chest Kit - 496 Gear Drive Cam - Oil Cooled - Black Pushtubes - M8 310-1383
$1,695.95
Skip to product information
S&S CYCLE Cam Chest Kit - 496 Gear Drive Cam - Oil Cooled - Black Pushtubes - M8 310-1383
$1,695.95
Fitment check
Does this fit your bike?
A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.
Cam Chest Kit - 496 Gear Drive Cam - Oil Cooled - Black Pushtubes - M8
Features
- Oil pump and cam plate is precision machined from billet aluminum
- Passage plugs are removable for servicing
- Independent scavenge sections for flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Magnet in cam chest to help stop debris from entering oil pump
- Increased oil flow capacity on both the feed and scavenge sides
- Includes updated oil pump and groove for optional OEM oil seal
- Adjustable pressure relief valve is adjustable with the unit installed in the engine
- Quickee pushrods
- Fast pump up and superior high RPM performance
- Reduced valve train noise from start up to shut down
- Close tolerances for low leak rates
- Tappet Cuffs:
- Hard anodized black coating
- Improve tappet stability in high lift and high rpm situations
- Pushrods:
- Tappets:
Specifications
- Application: Oil Cooled
- Exhaust Close: 15°
- Exhaust Duration: 243°
- Exhaust Lift: 0.485"
- Exhaust Lift at TDC: 0.097"
- Exhaust Open: 48°
- Features: Black Pushrod Tubes
- Grind: 496 Series
- Intake Close: 40°
- Intake Duration: 227°
- Intake Lift: 0.485"
- Intake Lift at TDC: 0.072"
- Intake Open: 7°
- Product Name: Camchest Kit
- Riding Style: Street
- Type: Gear
- Units: Kit
- Country of Origin: US
- Package Dimensions: 17.05 L × 11.73 W × 5.04 H in
- Shipping Weight: 12.15 lb
