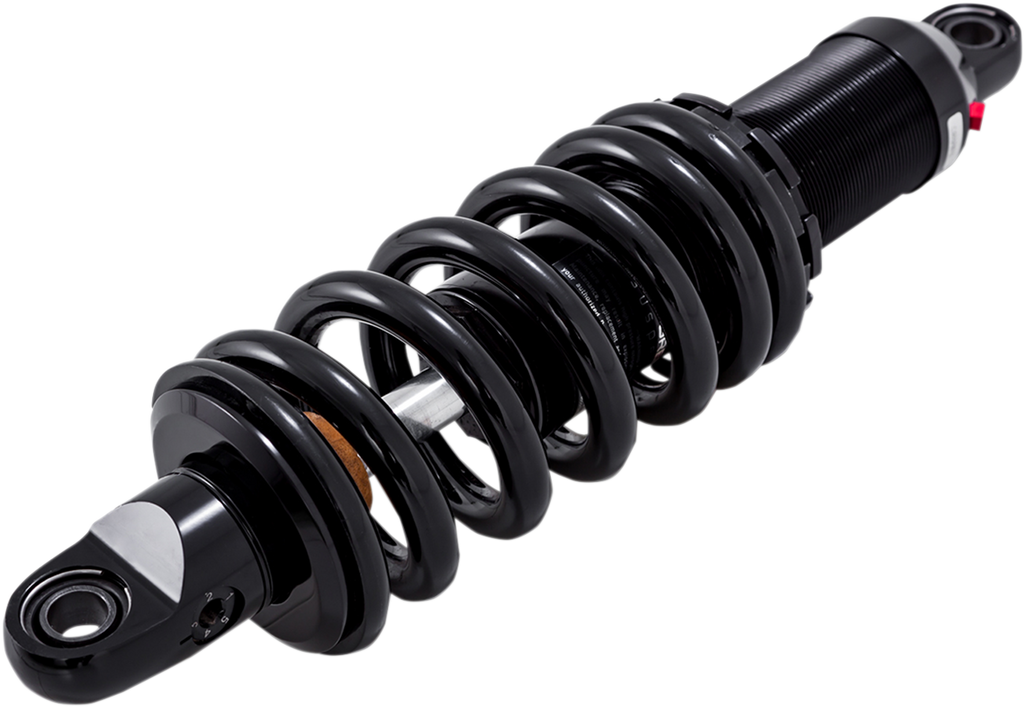

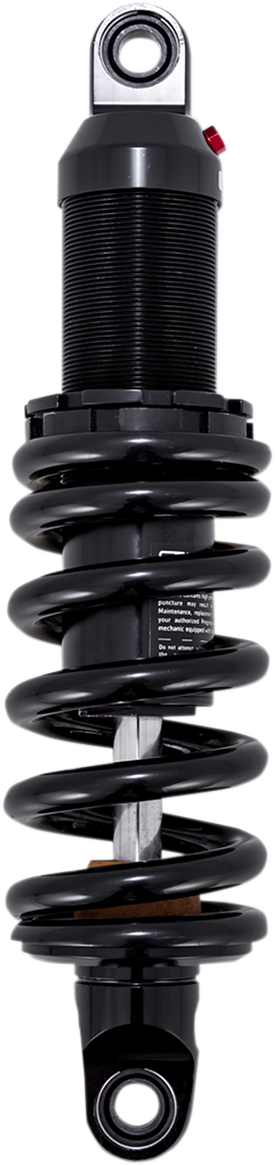

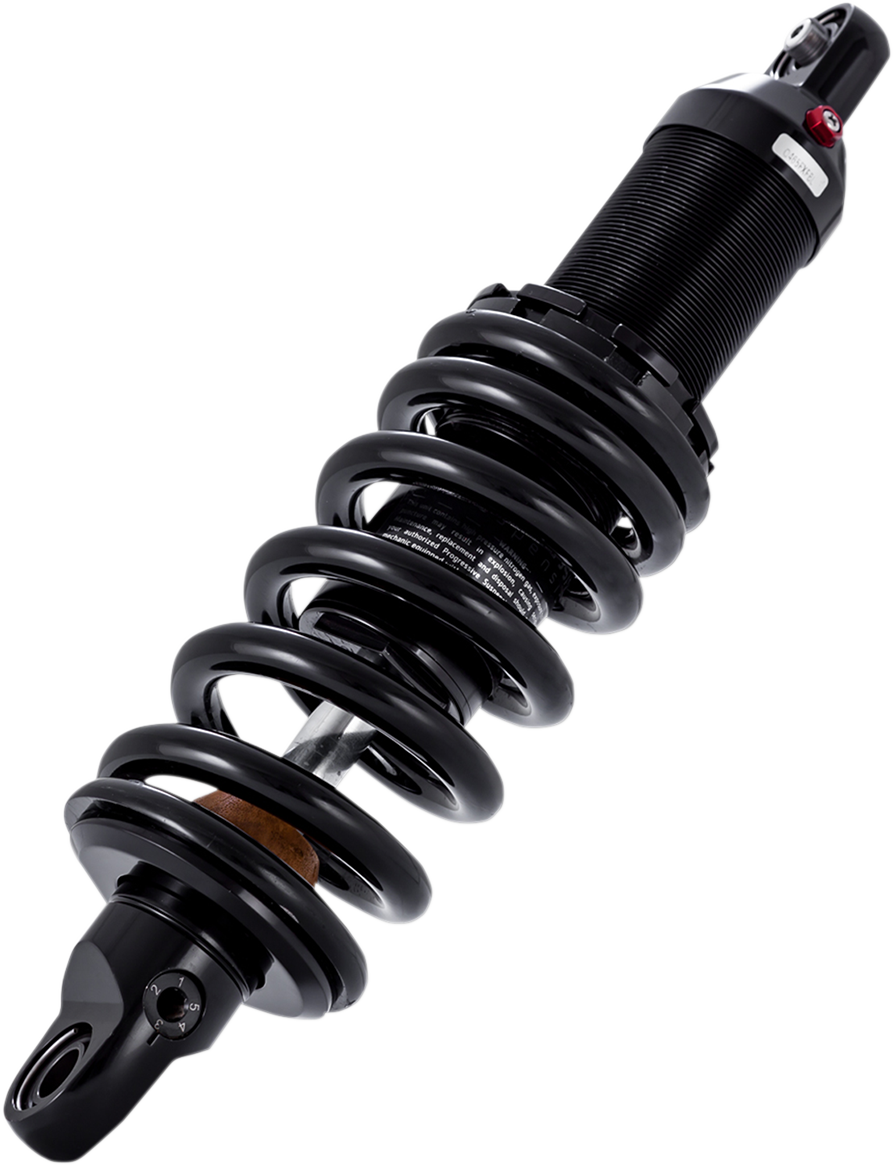

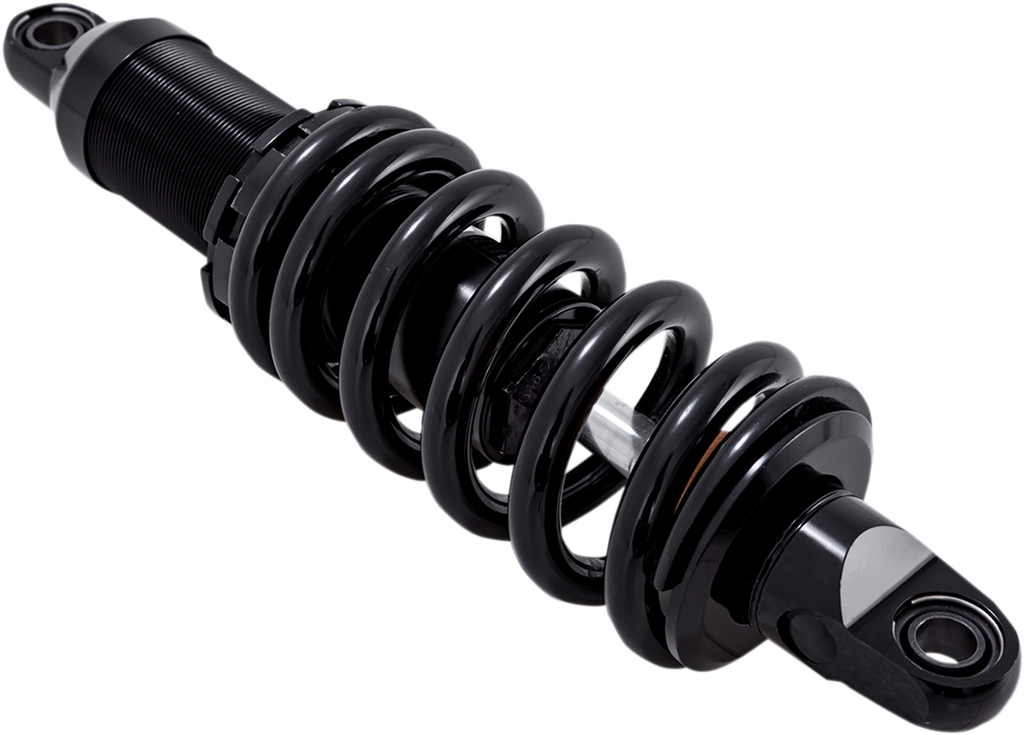

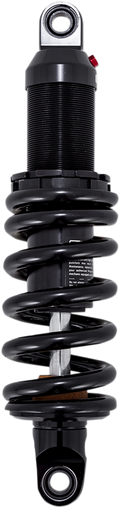

Progressive Suspension 465 Series Shock for Softails (Rear) - 465-1184B

465 Series Shocks - 13.5" - Black - Standard

Published features

• High-pressure gas monotube design for the ultimate performance
• Five-position rebound adjustment to tailor the suspension for changing conditions and riding styles
• Threaded shock body with a wide range of adjustment to fine-tune preload and sag
• Hard anodized aluminum body and components for excellent durability and corrosion resistance
• 46 mm bore and deflective disc piston provides precise damping
• 16 mm hard chrome shaft rides on custom viton seals for low friction and leak-free reliability
• Each shock is custom tuned (damping and spring rate) for each fitment
• Made in the USA
• Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.
• Heavy Duty Applications are recommended for bikes operating at or near the manufacturer’s maximum load rating over 50% of the time.

Published specifications

• Adjustment Type: Threaded Preload Adjustable
• Bore Size: 1.81"
• Color/Finish: Anodized, Black
• Damping Method: Gas Charged
• Duty: Standard
• Extended Length: 13.50"
• Height Adjustment: Lifts 1.00", Lifts 2.00"
• Material: Aluminum
• Model: 465 Series
• Mounting Position: Rear
• Product Name: Shock Absorber
• Reservoir Location: Internal
• Riding Style: Street
• Spring Type: Single Progressive Rate
• Type: Coilover Monotube
• Units: Each

Fitment: Drag Specialties published exact vehicle-fitment evidence for this manufacturer MPN. The published mounting position is rear. Confirm the exact year, model, configuration, and service position before ordering.

Local help: AVT's Boca Raton Harley service storefront can verify the exact application and quote professional installation.
