LEGEND SUSPENSION REVO-A Mono Shock - 13" - Standard - M-Eight Softail Models 1310-2249

Legend Suspension

LEGEND SUSPENSION REVO-A Mono Shock - 13" - Standard - M-Eight Softail Models 1310-2249

1310-2249

In stock

$999.95

Fitment check

Does this fit your bike?

Save the exact make, model, and year to check this product against AVT's reviewed fitment data.

Save my bike

Ask AVT to verify fitment

A saved-bike match is a shopping aid. Always review manufacturer notes, exclusions, measurements, and installation requirements.

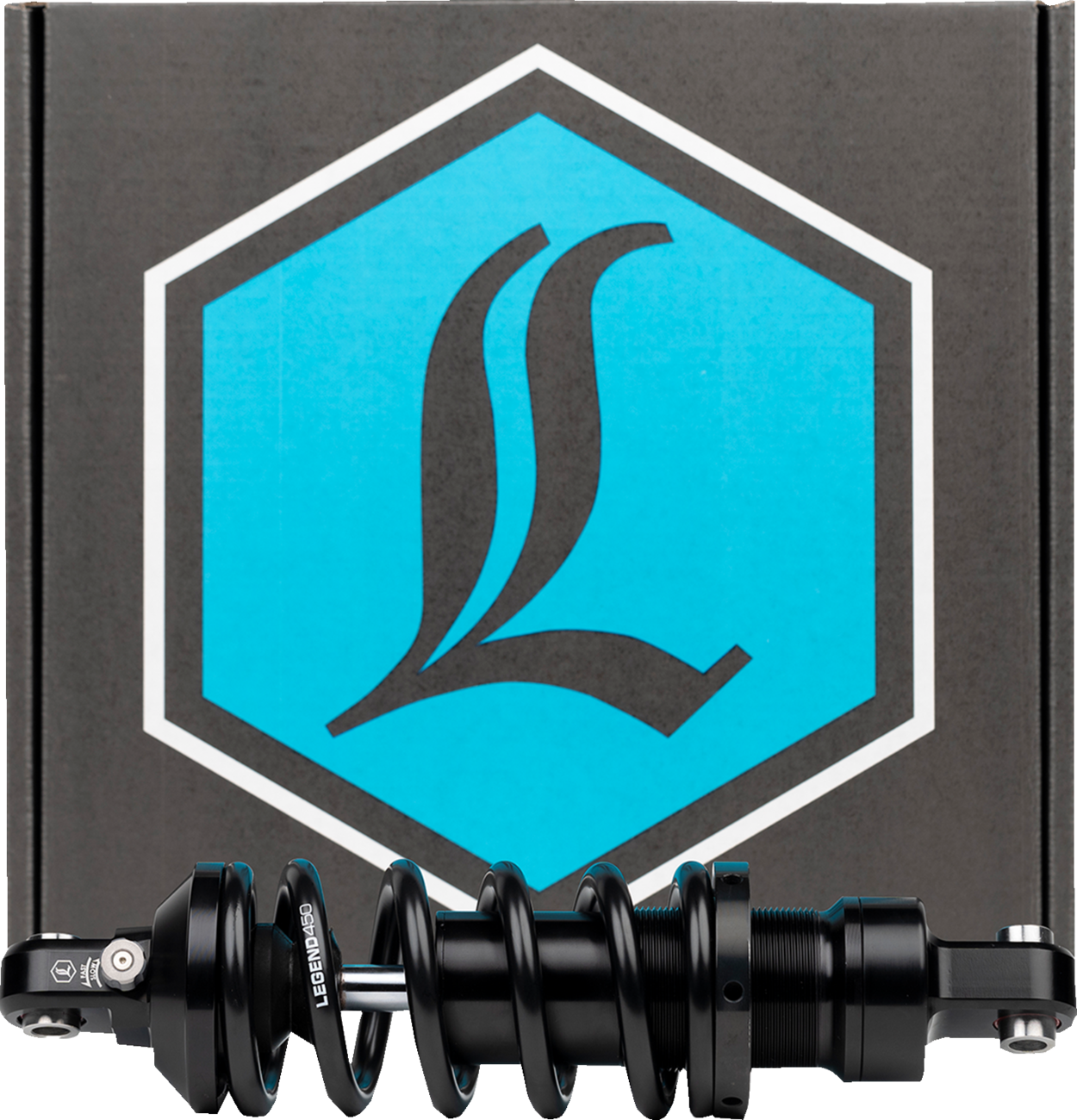

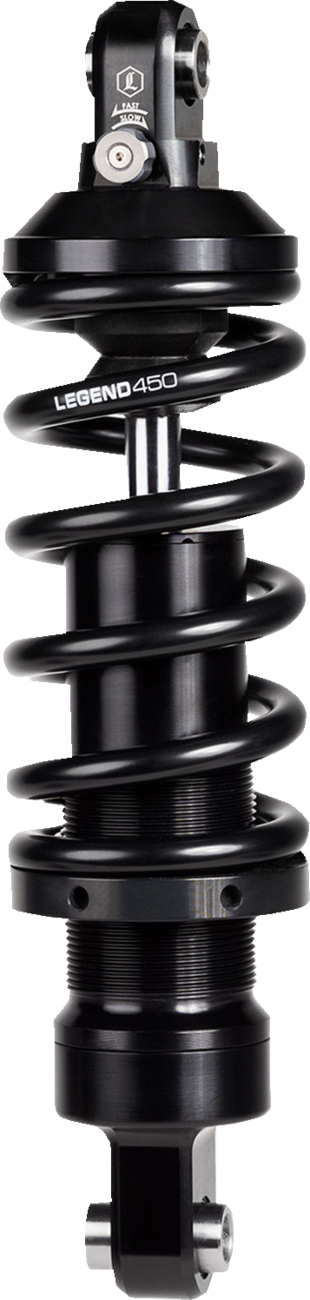

REVO-A Mono Shock - 13" - Standard - M-Eight Softail Models

Features

Revo-A coil designed specifically for M-8 Softail models
Available in 12.5", 13", and 13.5", standard or heavy-duty applications
Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
Legend's touring specific spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
Features adjustable rebound damping that is specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob
Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style
Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
Hard anodized, 46 mm billet aluminum mono tube design utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
Hard chromed shaft is 14% larger for increased strength
Internal floating nitrogen piston ensures consistent damping performance
Deflective disc valving self-adjusts to frequency and ensures controlled performance
Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel
Available in Black Type III hard coat anodize
Easy installation that utilizes the OEM mounting hardware
Included preload wrench makes adjusting easy
Sold as Mono Shock (1 shock only)
Designed for optimum performance with the Legend Axeo front suspension
Made by hand in Sturgis, SD, USA
