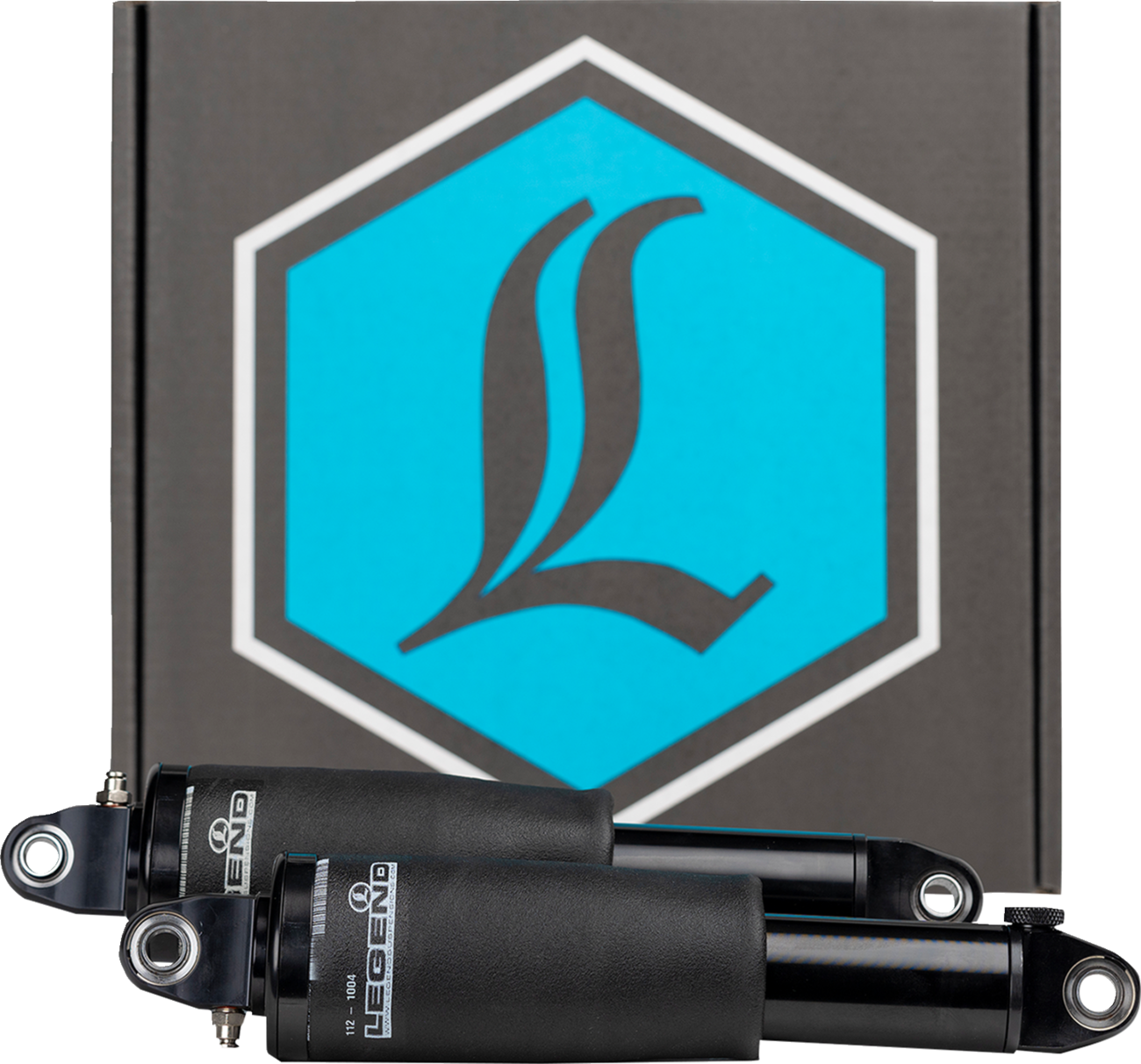

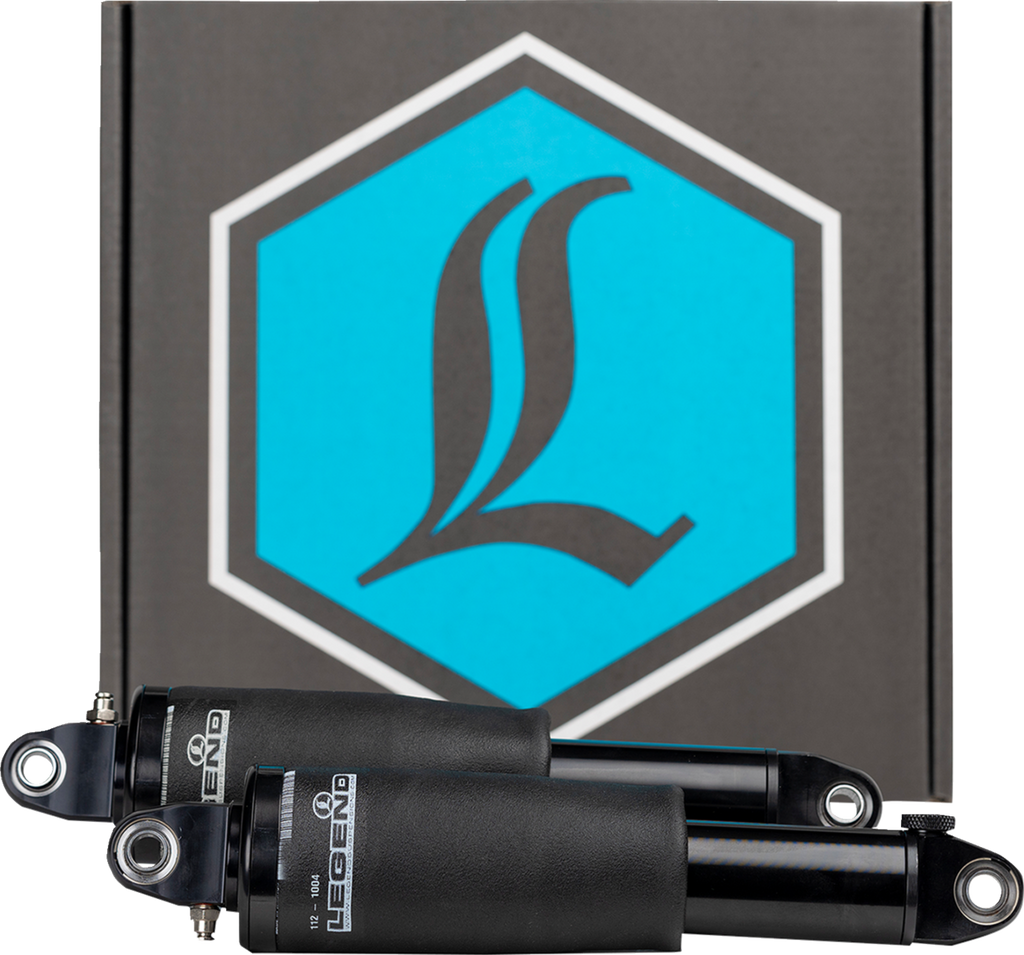

LEGEND SUSPENSION AIR-A Suspension - 13" 1311-0188

AIR-A Suspension - 13"

Features

• Legend AIR Suspensions systems set the high mark in ultimate ride quality
• Exclusive Aramid Fiber air spring technology provides spring rate adjustability
• Air springs maximize wheel travel and adjust to any desired ride height
• Fitment accommodates 12" and 13" needs
• Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
• Type III hard-coat black anodized machined aluminum bodies
• Low friction sealing system and sliding bearings for improved performance and feel
• High flow piston reacts quickly for improved fluid flow management
• Deflective disc valving self-adjusts to frequency and ensures controlled performance
• All the benefits of the standard AIR suspension system, plus six external knob adjustments allow fine-tuning of rebound
• Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
• Light to heavy riders can fine-tune ride preference
• Aggressive to casual riding styles can tune to desired quality or personal preference

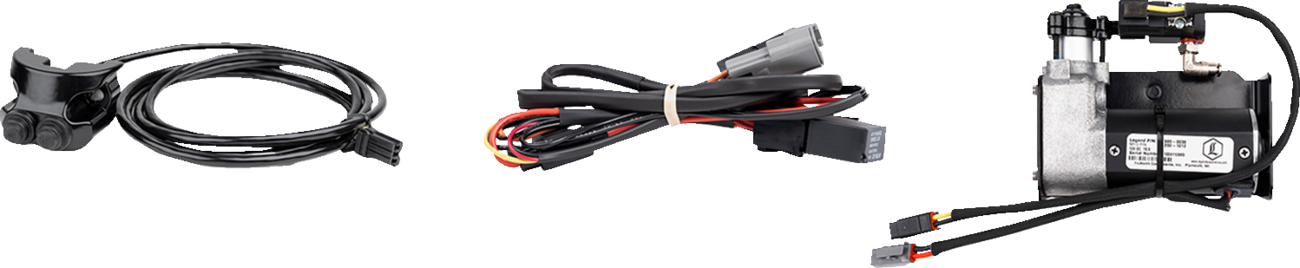

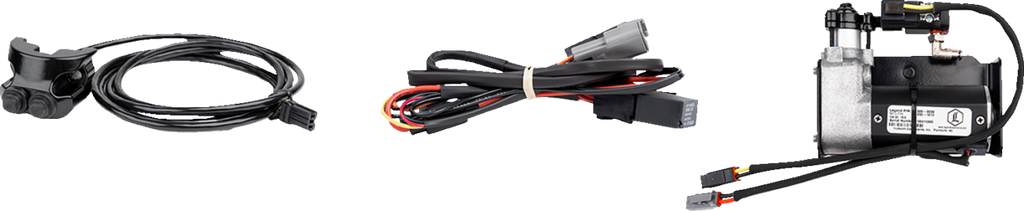

• Includes prewired air compressor with model specific mounting
• Complete wire harness installs with three easy Deutsch connections
• Includes OEM-looking black handlebar mounted control for easy "on-the-go" adjustability
• Optional chrome handlebar mounted control sold separately (Part # 0616-0207)
• Optional fairing mounted matching gauges (Part #'s 2212-0484, 2212-0485, 2212-0492, 2212-0493, 2212-0494) sold separately
• Assembled by hand in Sturgis, SD USA

Specifications

• Adjustment Type: Adjustable Rebound Damping
• Color/Finish: Anodized
• Extended Length: 13.00"
• Material: Aramid Fiber
• Model: Air-A
• Mounting Position: Rear
• Product Name: Shock Absorber
• Reservoir Location: Internal
• Riding Style: Street
• Type: Air Twin-Tube
• Units: Pair
• Country of Origin: US
• Package Dimensions: 16.46 L × 15.31 W × 5.98 H in
• Shipping Weight: 11.57 lb
